Camshaft Position Sensor: Service and Repair

Camshaft Position (CMP) Sensor













Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Turn the ignition switch to the OFF position.

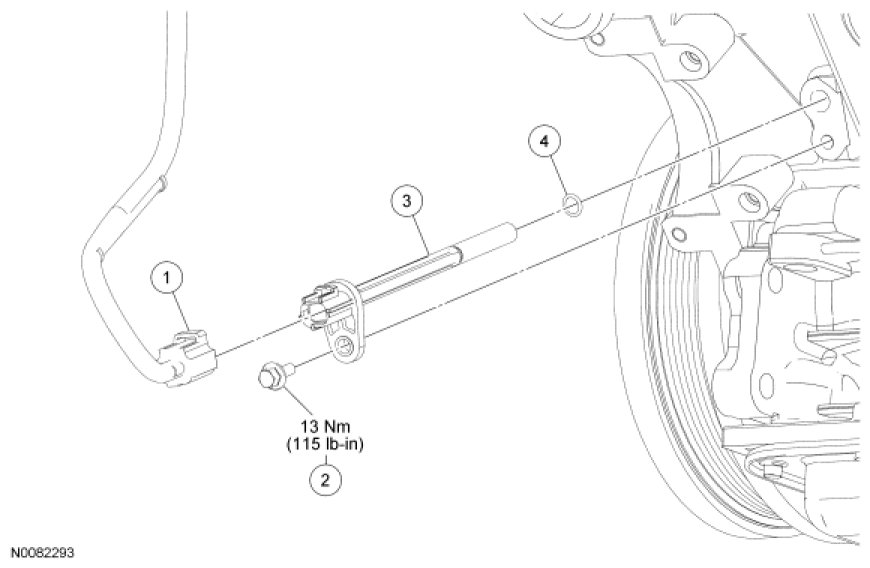

3. NOTE: The Camshaft Position (CMP) sensor is located behind the power steering pump.

Disconnect the CMP sensor electrical connector.

4. Remove the bolt, the CMP sensor and discard the O-ring seal.
- To install, tighten to 13 Nm (115 lb-in).

5. NOTE: Apply clean engine oil to the new O-ring seal prior to installation.

To install, reverse the removal procedure.

- Install a new O-ring seal.
