Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure (MAP) Sensor

Removal and Installation

1. Turn the ignition switch to the OFF position.

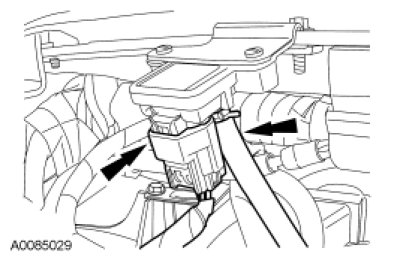

2. Disconnect the Manifold Absolute Pressure (MAP) sensor.
- Disconnect the pressure hose.

- Disconnect the electrical connector.

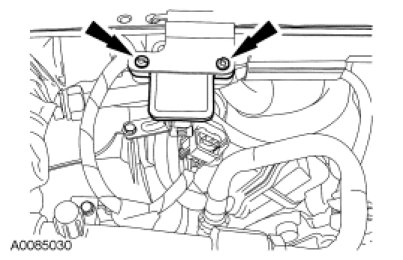

3. Remove the 2 mounting screws and the MAP sensor.





4. To install, reverse the removal procedure.
