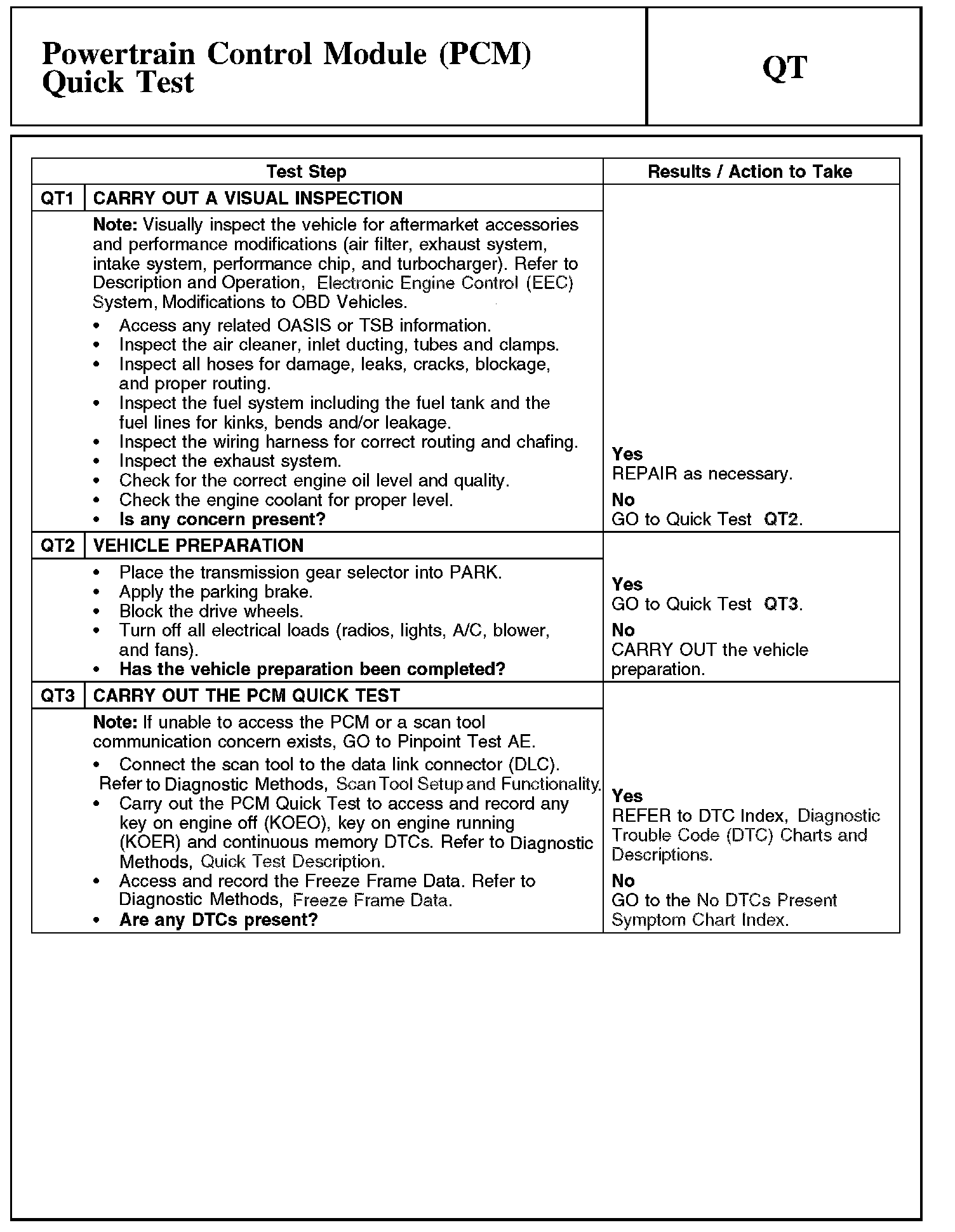

QT : Powertrain Control Module (PCM) Quick Test
QT : POWERTRAIN CONTROL MODULE (PCM) QUICK TEST
QT1-QT3:
