Console 2 Power Point Connector (C3064)

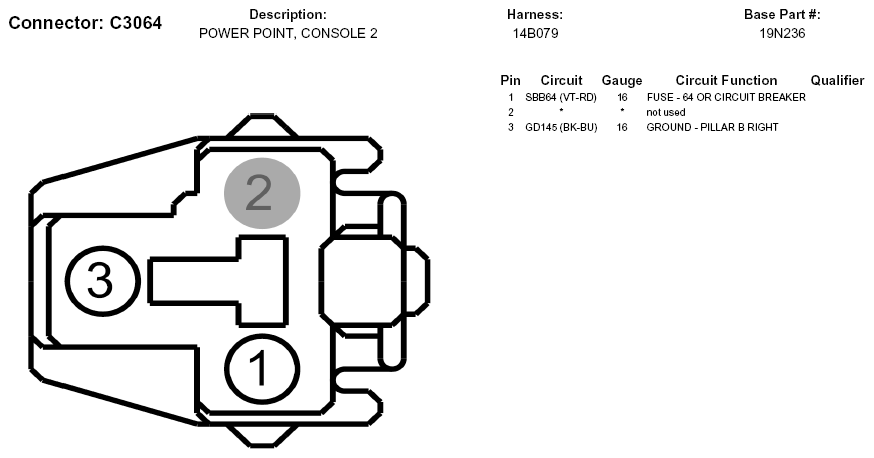

Fig 1: Console 2 Power Point Connector End View (C3064)
G05747137Courtesy of FORD MOTOR CO.
