Blower Motor: Notes
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

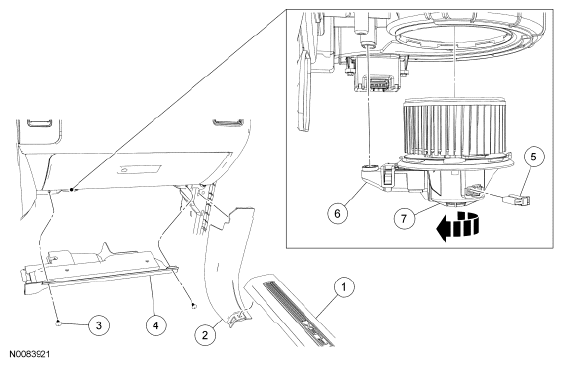

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7413208 | RH scuff plate trim panel |
| 2 | 7402344 | RH lower A-pillar trim panel |
| 3 | W705589 | RH lower instrument panel insulator pin-type retainer (2 required) |
| 4 | 54046A24 | RH lower instrument panel insulator |
| 5 | - | Blower motor electrical connector (part of 14401) |
| 6 | - | Blower motor vent tube (part of 19805) |
| 7 | 19805 | Blower motor and wheel assembly |
