Heating Ventilation Air Conditioning (HVAC) Module: Notes

WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

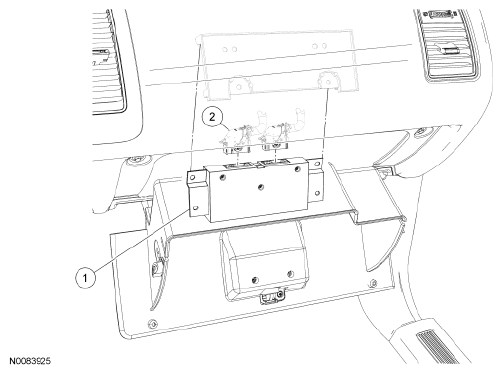

Fig 1: Identifying Heating Ventilation Air Conditioning (HVAC) Module

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	19980	HVAC module
2	-	HVAC module electrical connector (2 required) (part of 14401)
