Exhaust Gas Recirculation (EGR) System Components - Exploded View, 3.0L
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

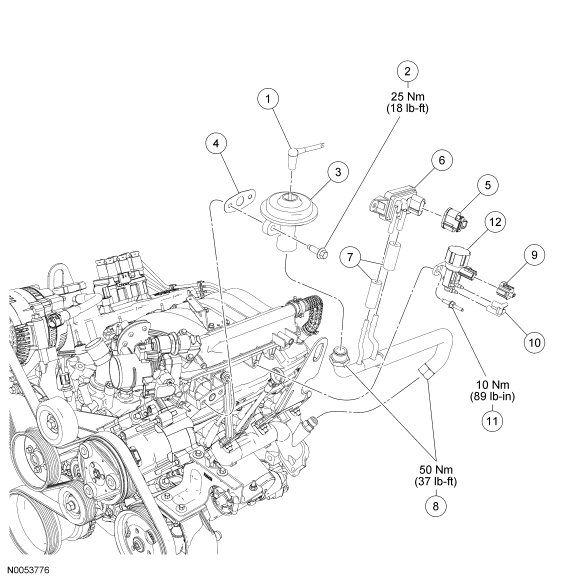

Fig 1: Exploded View Of Exhaust Gas Recirculation (EGR) System Components With Torque Specifications - 3.0L
| Item | Part Number | Description |
|---|---|---|
| 1 | 9E499 | Exhaust gas recirculation (EGR) vacuum hose fitting |
| 2 | W500224 | EGR valve bolt (2 required) |
| 3 | 9D475 | EGR valve |
| 4 | 9D476 | EGR valve gasket |
| 5 | 14A464 | Differential pressure feedback EGR sensor electrical connector (part of 12B637) |
| 6 | 9J460 | Differential pressure feedback EGR sensor |
| 7 | 9P761 | Differential pressure feedback EGR sensor hoses |
| 8 | 9D477 | Exhaust manifold-to-EGR valve tube |
| 9 | 14A464 | EGR vacuum regulator solenoid electrical connector (part of 12B637) |
| 10 | 9E499 | EGR vacuum regulator solenoid vacuum hose fitting |
| 11 | W708628 | EGR vacuum regulator solenoid stud bolt |
| 12 | 9J459 | EGR vacuum regulator solenoid |
- For additional information, refer to the appropriate procedures.
