Typical Diagnostic Reference Values

Typical Diagnostic Reference Values Notes (Part 1):





Typical Diagnostic Reference Values Notes (Part 2):





3.0L 4V Escape/Mariner (Part 1):

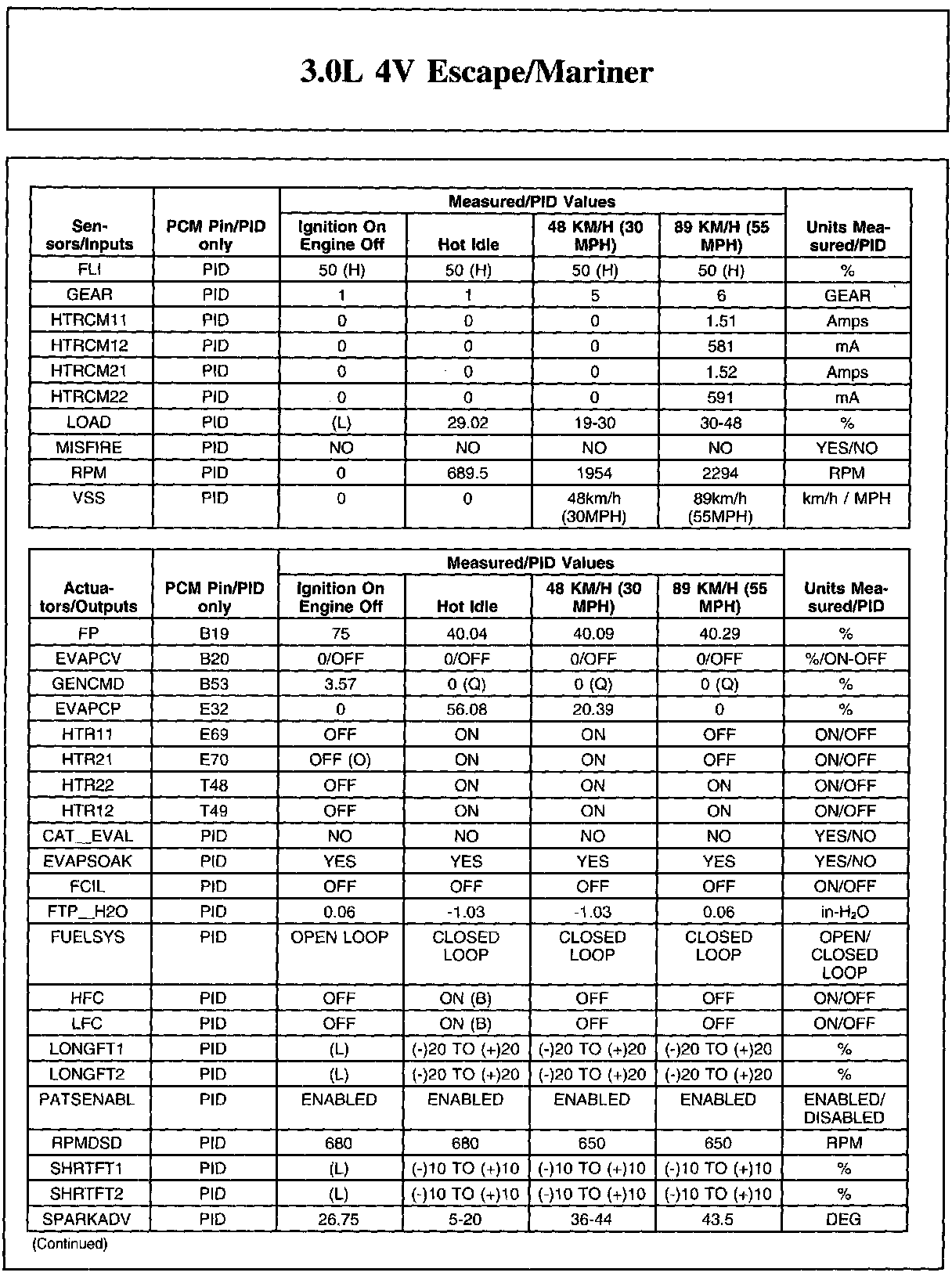

3.0L 4V Escape/Mariner (Part 2):

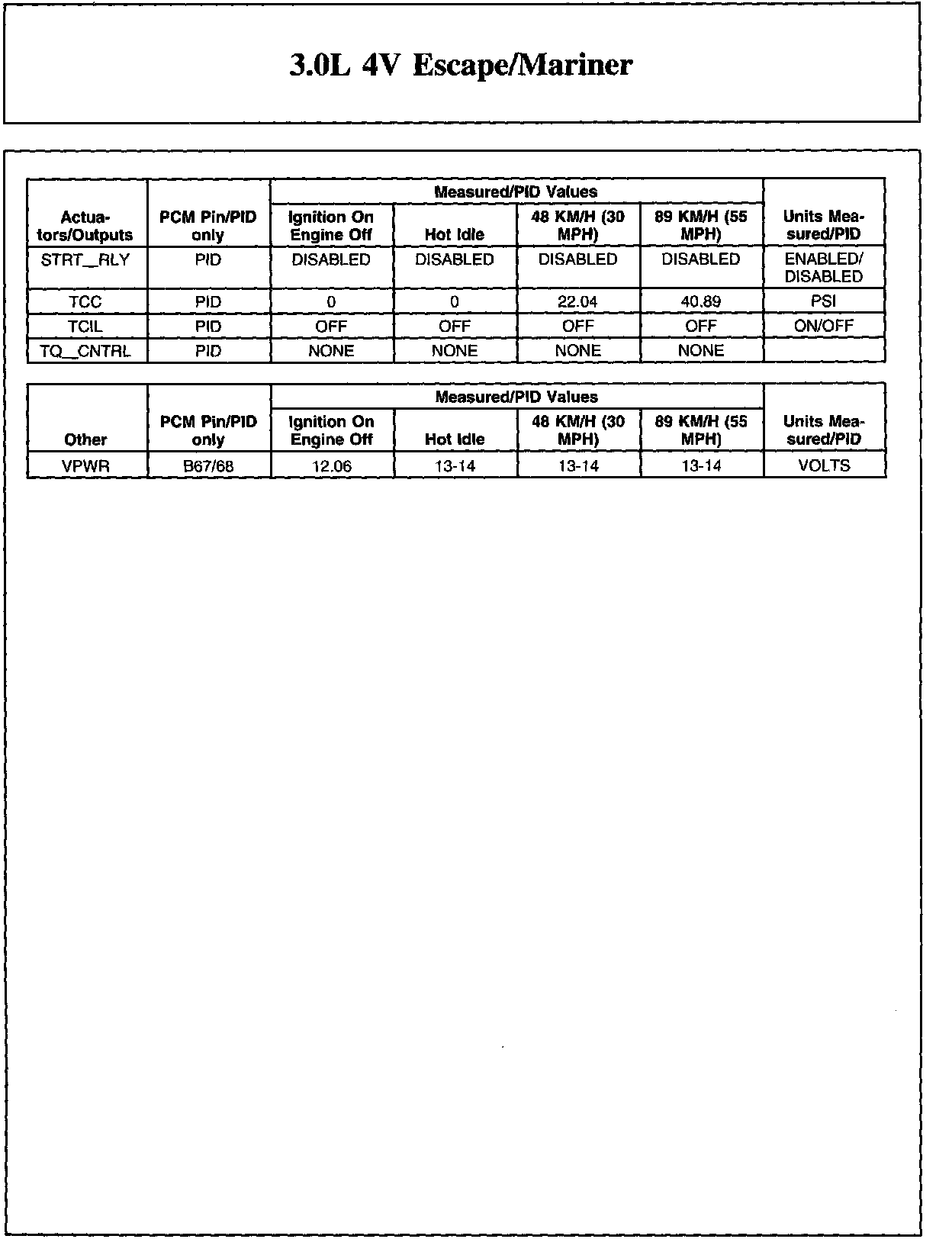

3.0L 4V Escape/Mariner (Part 3):
