Flex Plate

Lower End Components - Exploded View

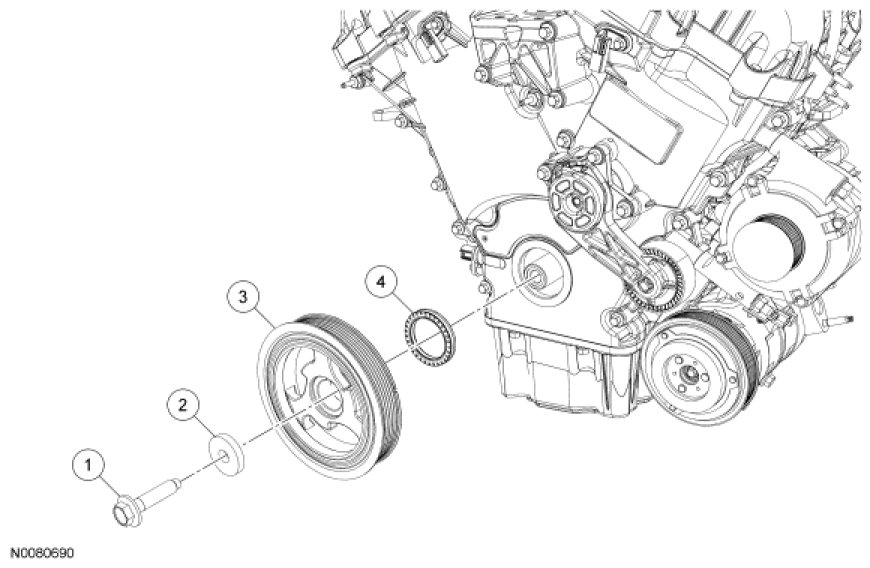

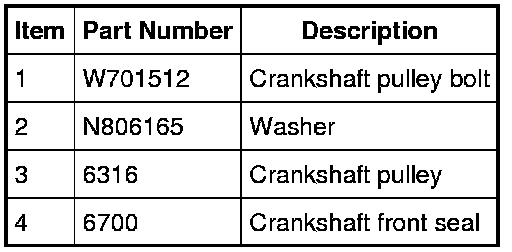

Crankshaft Pulley and Front Seal

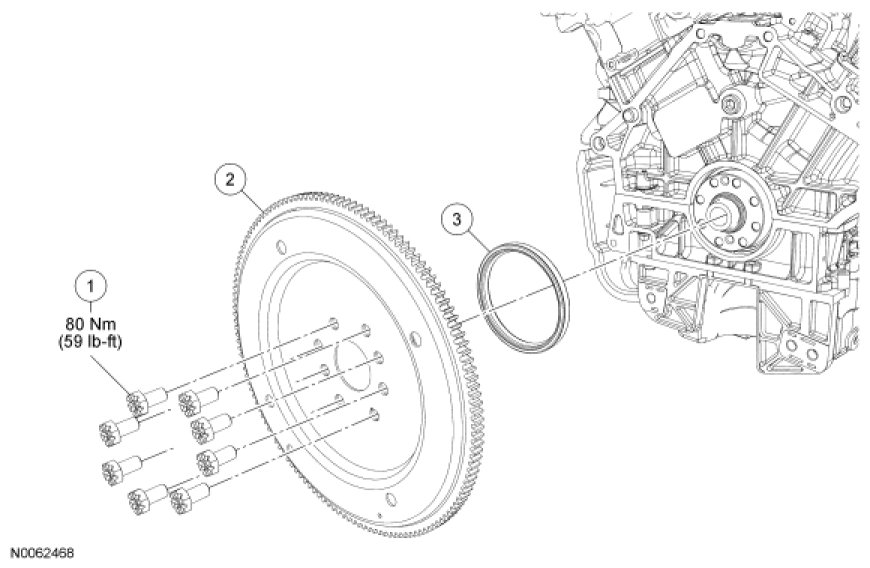

Flexplate and Rear Seal

1. For additional information, refer to the procedures.
