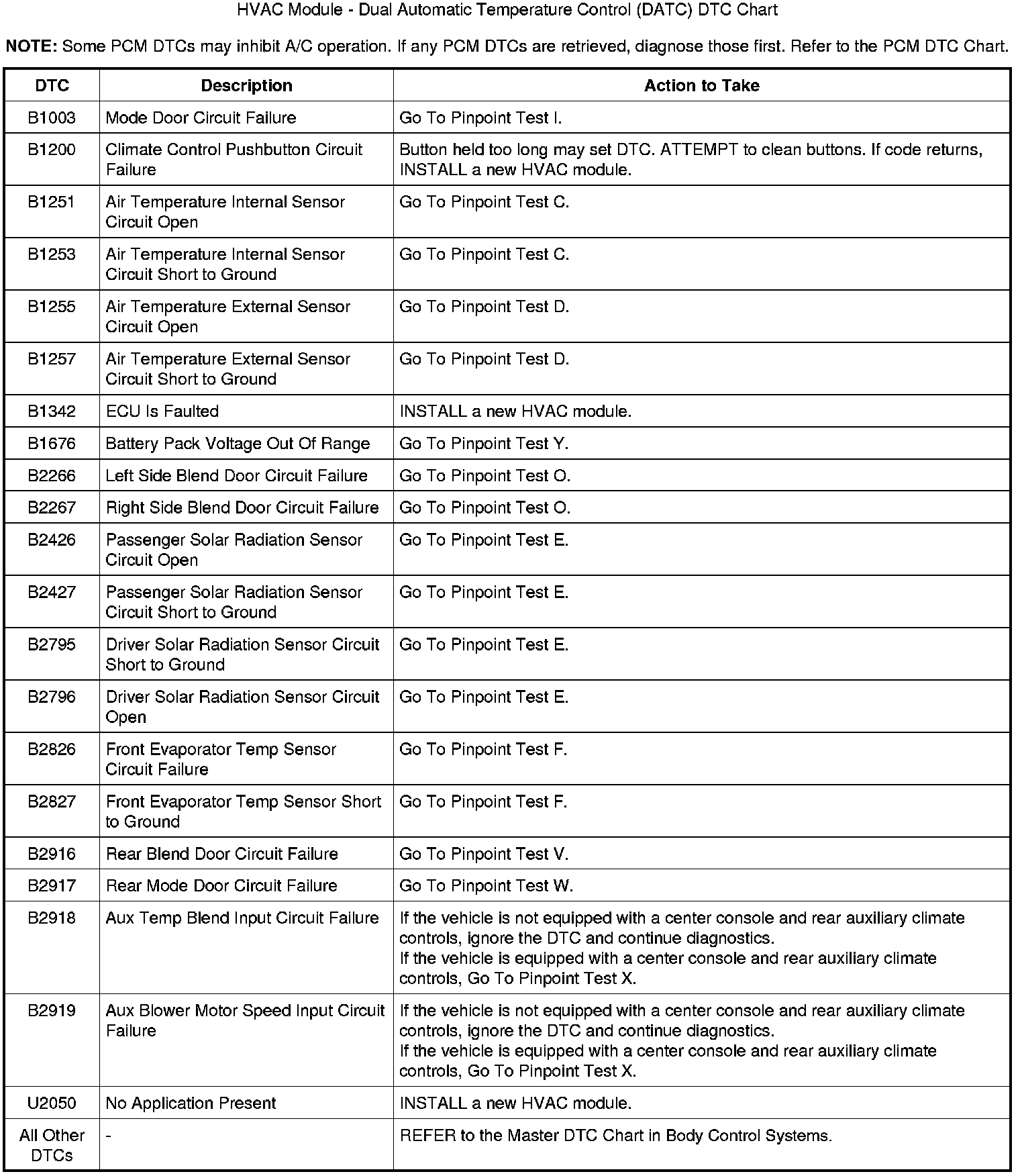

HVAC Module - Dual Automatic Temperature Control (DATC) DTC Chart




Climate Control System

DTC Charts


B1003-B2919 / U2050:
