Safety Belt Shoulder Height Adjuster: Notes

NOTE: RH shown in illustration, LH similar.

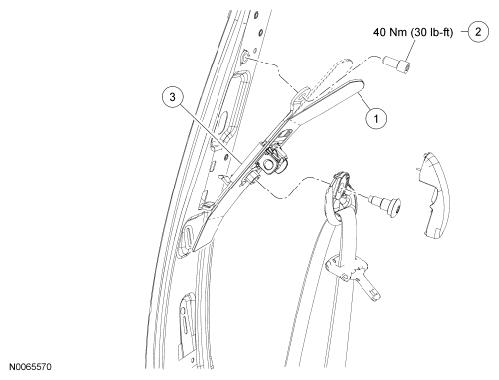

Fig 1: Safety Belt Shoulder Height Adjuster With Torque Specifications
G06135575Courtesy of FORD MOTOR CO.
PART NUMBER REFERENCE

Item Part Number Description
1 - Height adjuster cover (part of 602B82)
2 - Height adjuster bolt
3 602B82 Height adjuster
