Home >> Ford >> 2009 >> Explorer 2WD V8-4.6L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> HVAC Module - Dual Automatic Temperature Control (DATC) DTC Chart
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

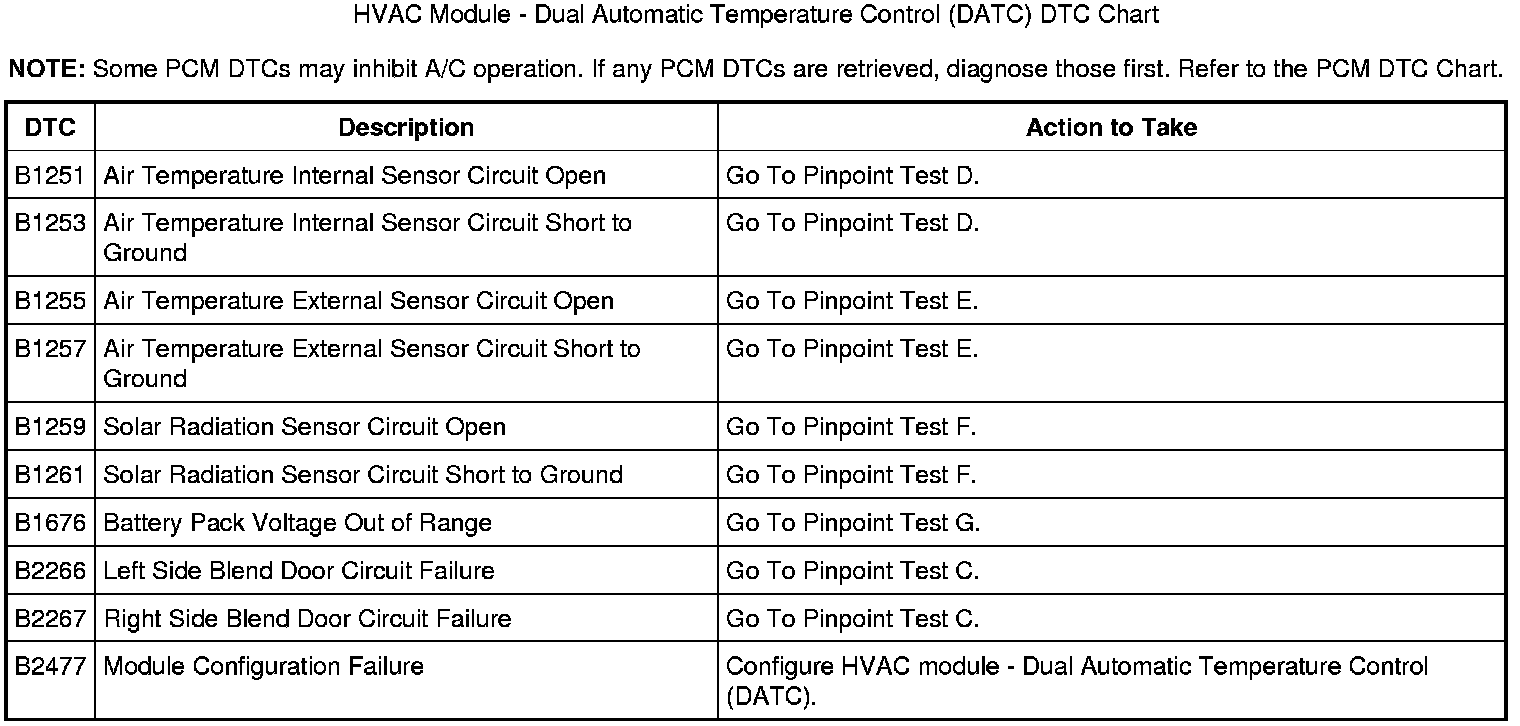

HVAC Module - Dual Automatic Temperature Control (DATC) DTC Chart




Climate Control System

DTC Charts



B1251-B2477:
