Camshaft Position Sensor: Service and Repair

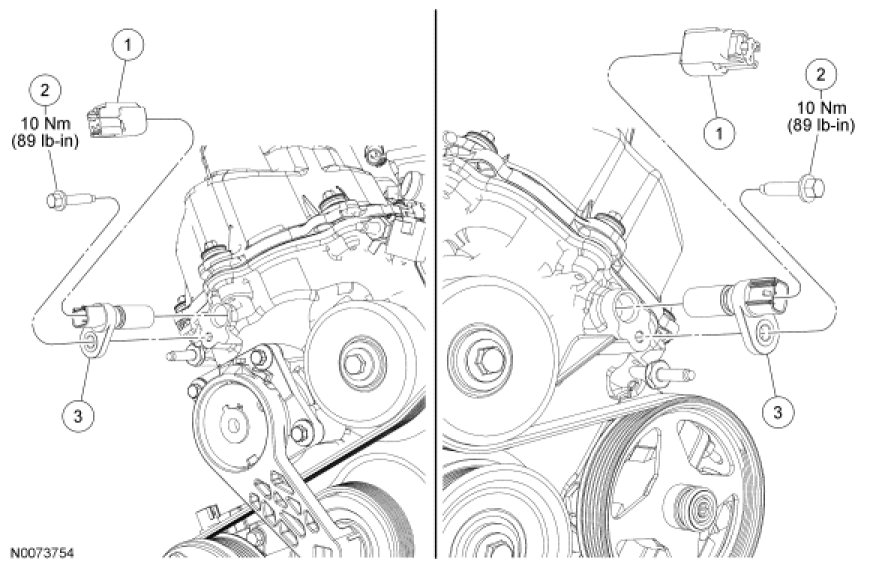

Camshaft Position (CMP) Sensor - 4.6L (3V)









Removal and Installation

RH side

1. Remove the Air Cleaner (ACL) outlet pipe.

Both sides

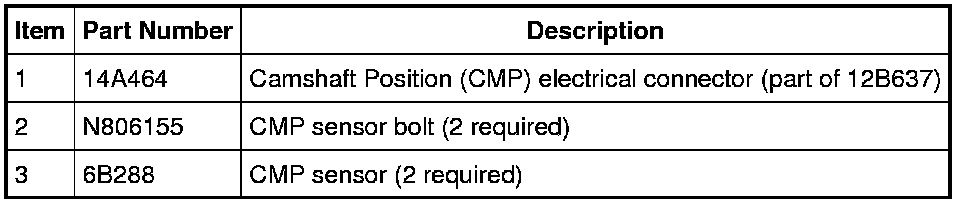

2. Disconnect the Camshaft Position (CMP) sensor electrical connector.

3. Remove the bolt and the CMP sensor.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
