Parking Assist Control Module: Service and Repair

Parking Aid Module (PAM) - Explorer

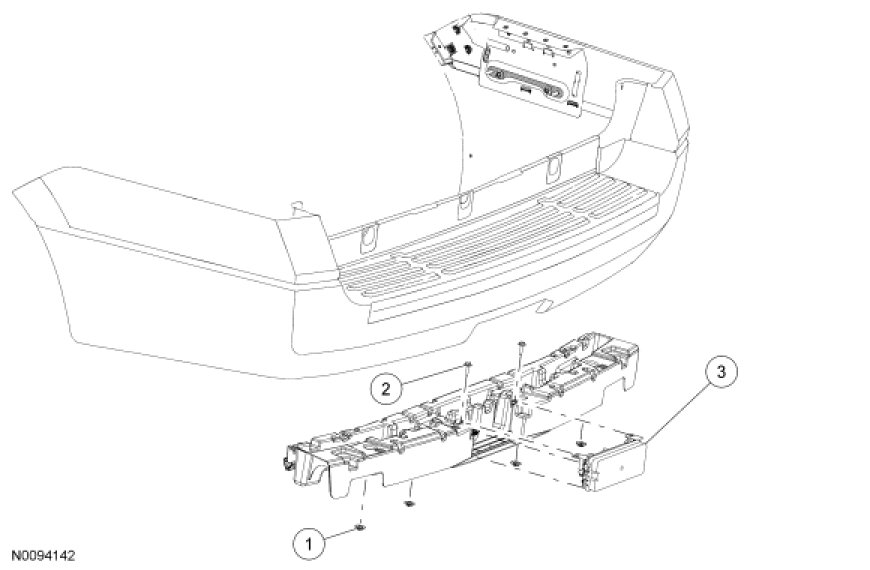

Removal and Installation

1. Disconnect the Parking Aid Module (PAM) bumper harness from the body harness.

2. Remove the rear bumper cover.

3. Remove the 4 insulator-to-bumper cover nuts and the insulator from the bumper cover.

4. Disconnect the PAM bumper harness from the PAM.

5. Remove the 2 PAM bolts.

6. Remove the PAM assembly.

7. To install, reverse the removal procedure.
