Home >> Ford >> 2009 >> Explorer 4WD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> Control Module, Transfer Case >> 4X4 Control Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

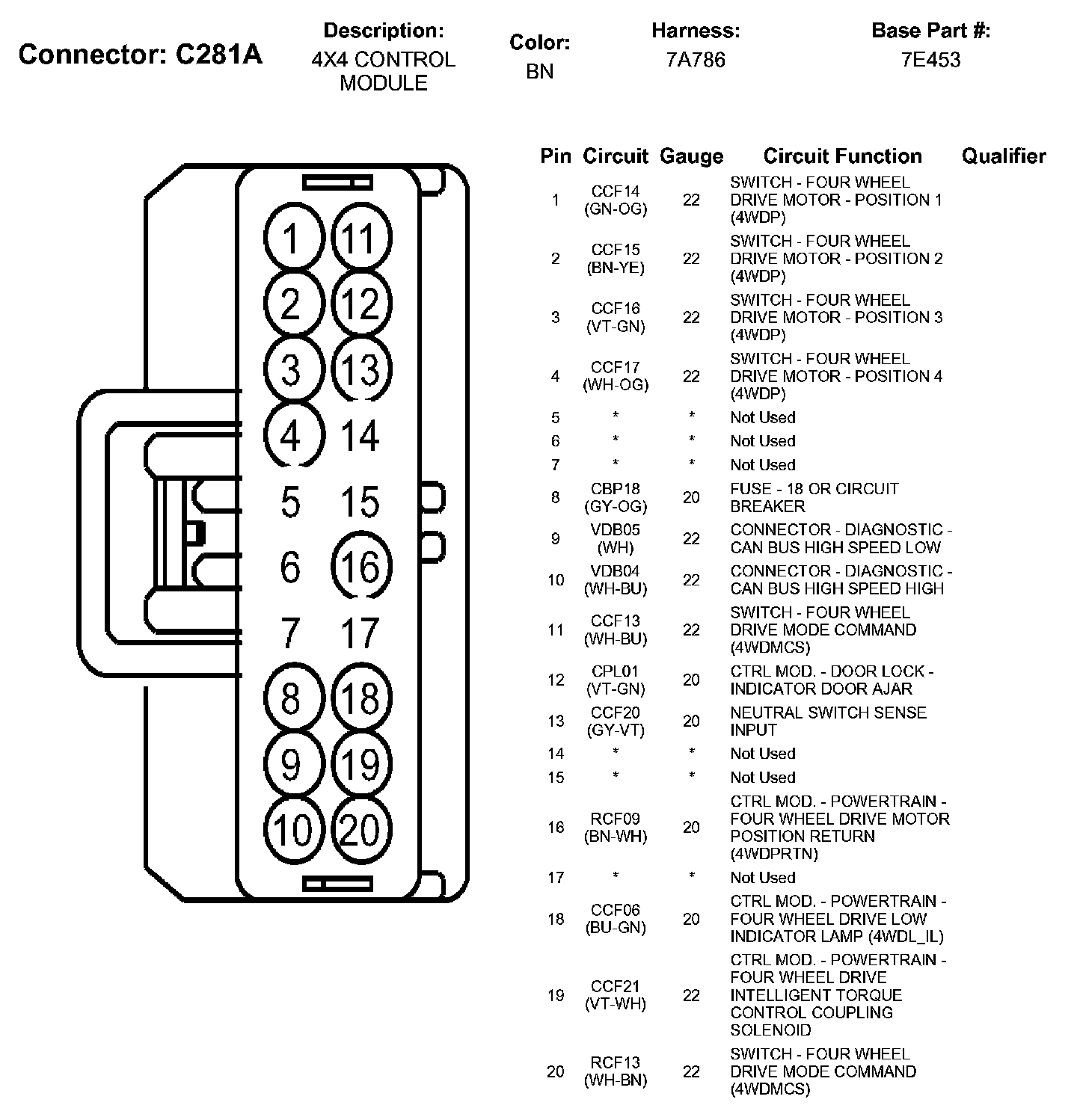

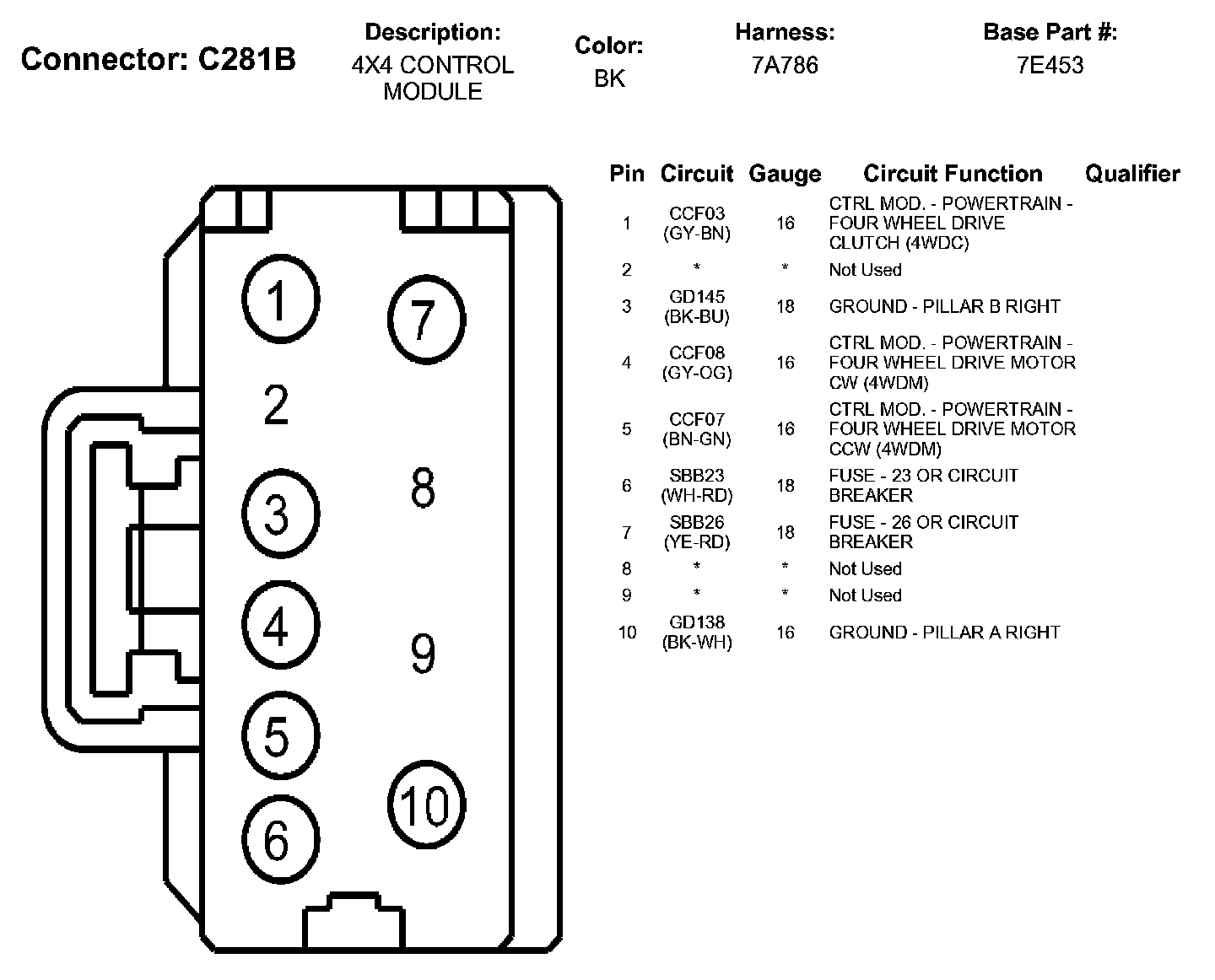

4X4 Control Module
