Heated Seat Module - Front Seat: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

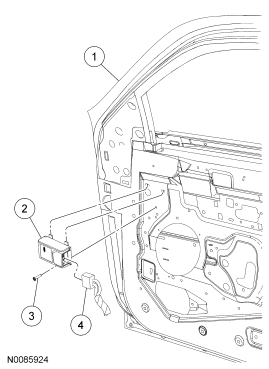

| Item |
Part Number |
Description |
| 1 |
- |
Front passenger door |
| 2 |
- |
Electrical connector (part of 14A005) |
| 3 |
- |
Retainer |
| 4 |
14C724 |
Heated seat module |
