Driver Air Bag Module: Notes

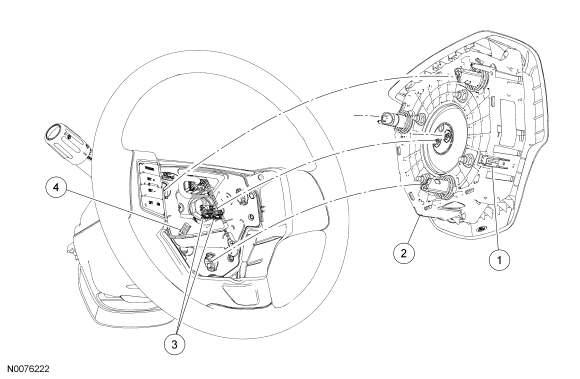

Fig 1: Identifying Driver Air Bag Module Components
GF0043016Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Horn switch electrical connector
2 043B13 Driver air bag module
3 - Driver air bag module electrical connectors (part of 043B13)
4 - Horn switch electrical connector
