Front Impact Severity Sensor: Notes
NOTE:
Left side shown in Fig 1, right side similar.

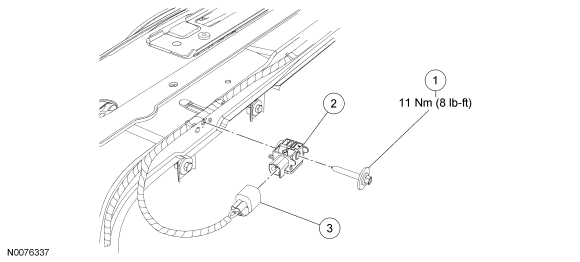

Fig 1: Front Impact Severity Sensor Replacement Components With Torque Specifications -- Early Production
| Item | Part Number | Description |
|---|---|---|
| 1 | W712191 | Front impact severity sensor bolt |
| 2 | 14B006 | Front impact severity sensor (early production) (2 required) |
| 3 | - | Front impact severity sensor electrical connector (part of 14290) |

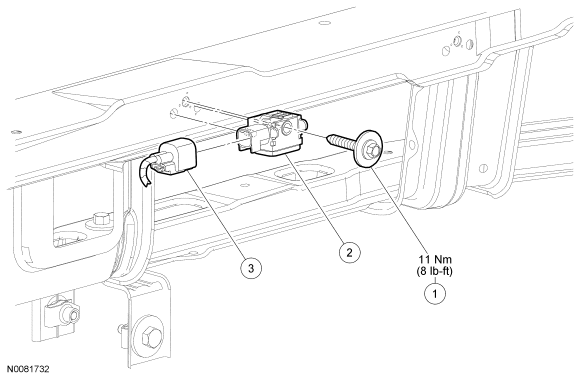

Fig 2: Front Impact Severity Sensor Replacement Components With Torque Specifications -- Late Production
| Item | Part Number | Description |
|---|---|---|
| 1 | W712191 | Front impact severity sensor bolt |
| 2 | 14B006 | Front impact severity sensor (late production) (1 required) |
| 3 | - | Front impact severity sensor electrical connector (part of 14290) |
