Coolant Temperature Sensor/Switch (For Computer): Service and Repair

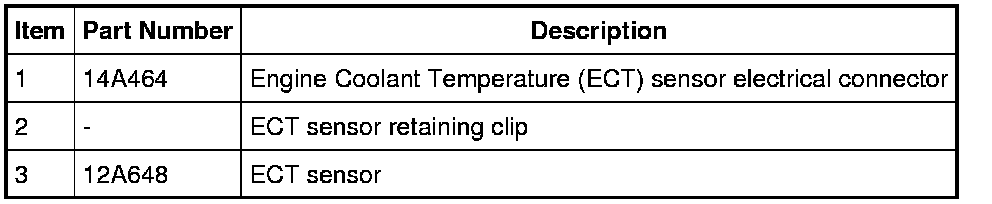

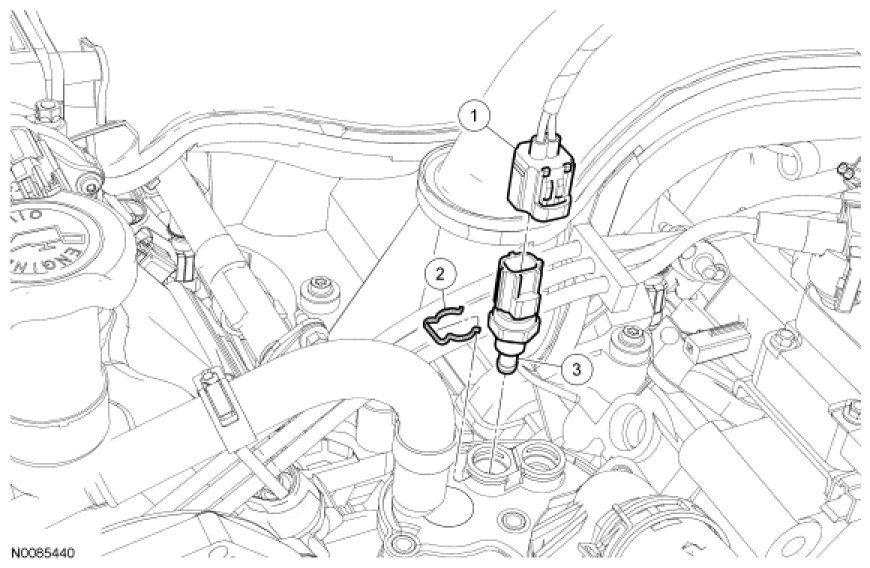

Engine Coolant Temperature (ECT) Sensor - 4.0L SOHC

Removal and Installation

1. Drain the cooling system.

2. Disconnect the Engine Coolant Temperature (ECT) sensor electrical connector.

3. Remove the retaining clip and the ECT sensor.

4. To install, reverse the removal procedure.

5. Fill and bleed the cooling system.
