Typical Diagnostic Reference Values

Typical Diagnostic Reference Values Notes (Part 1):





Typical Diagnostic Reference Values Notes (Part 2):

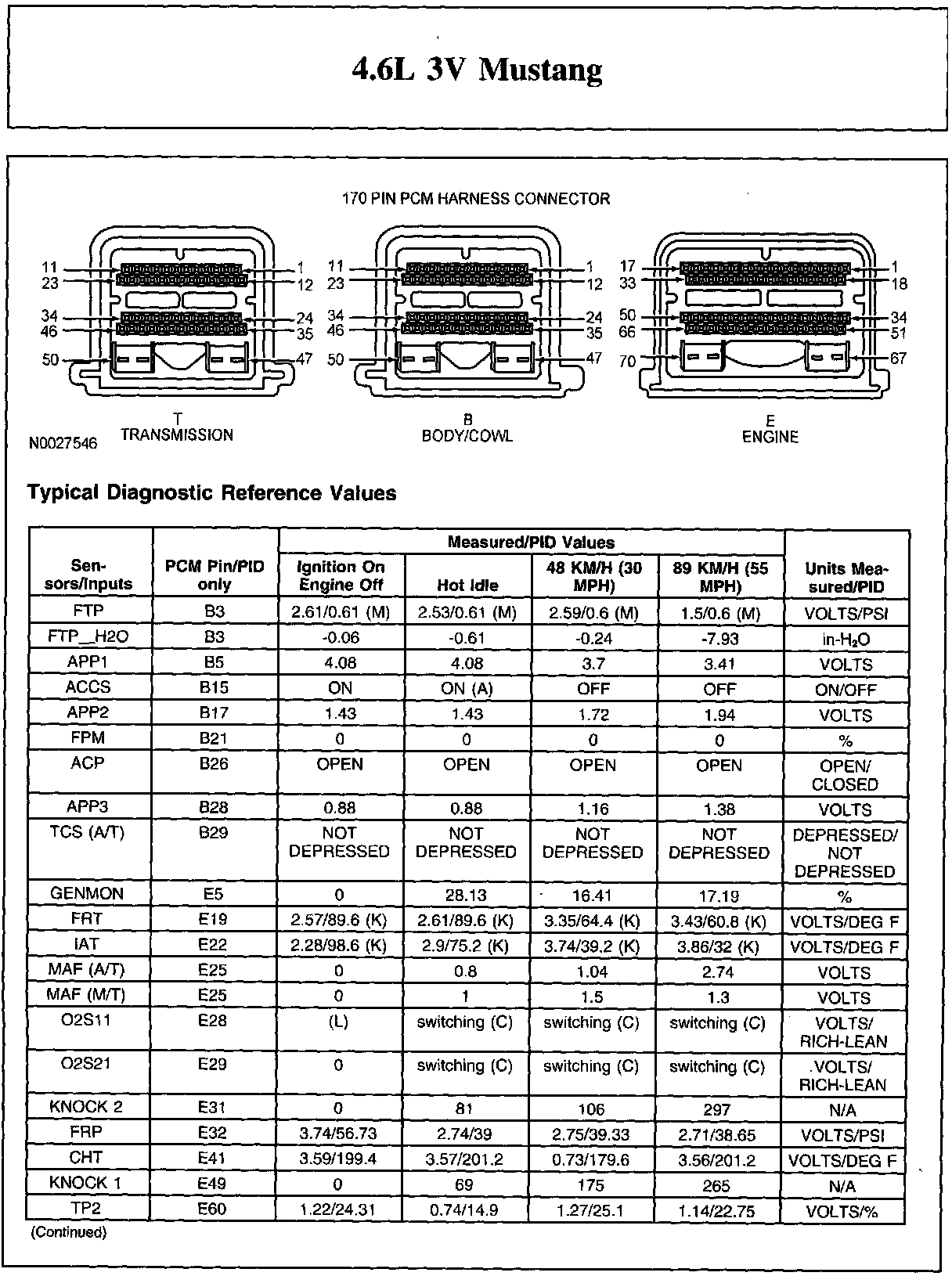

4.6L Mustang (Part 1):

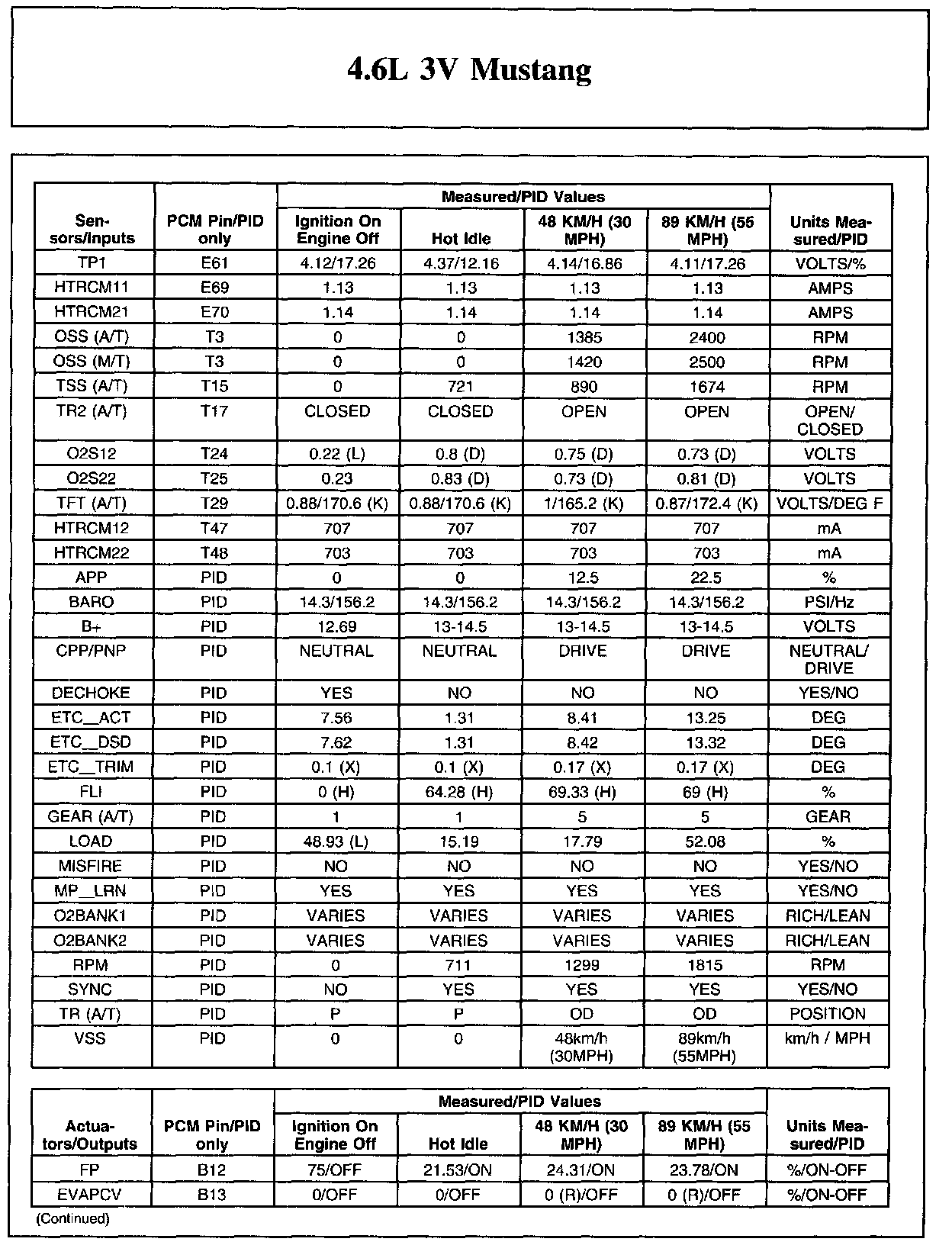

4.6L Mustang (Part 2):

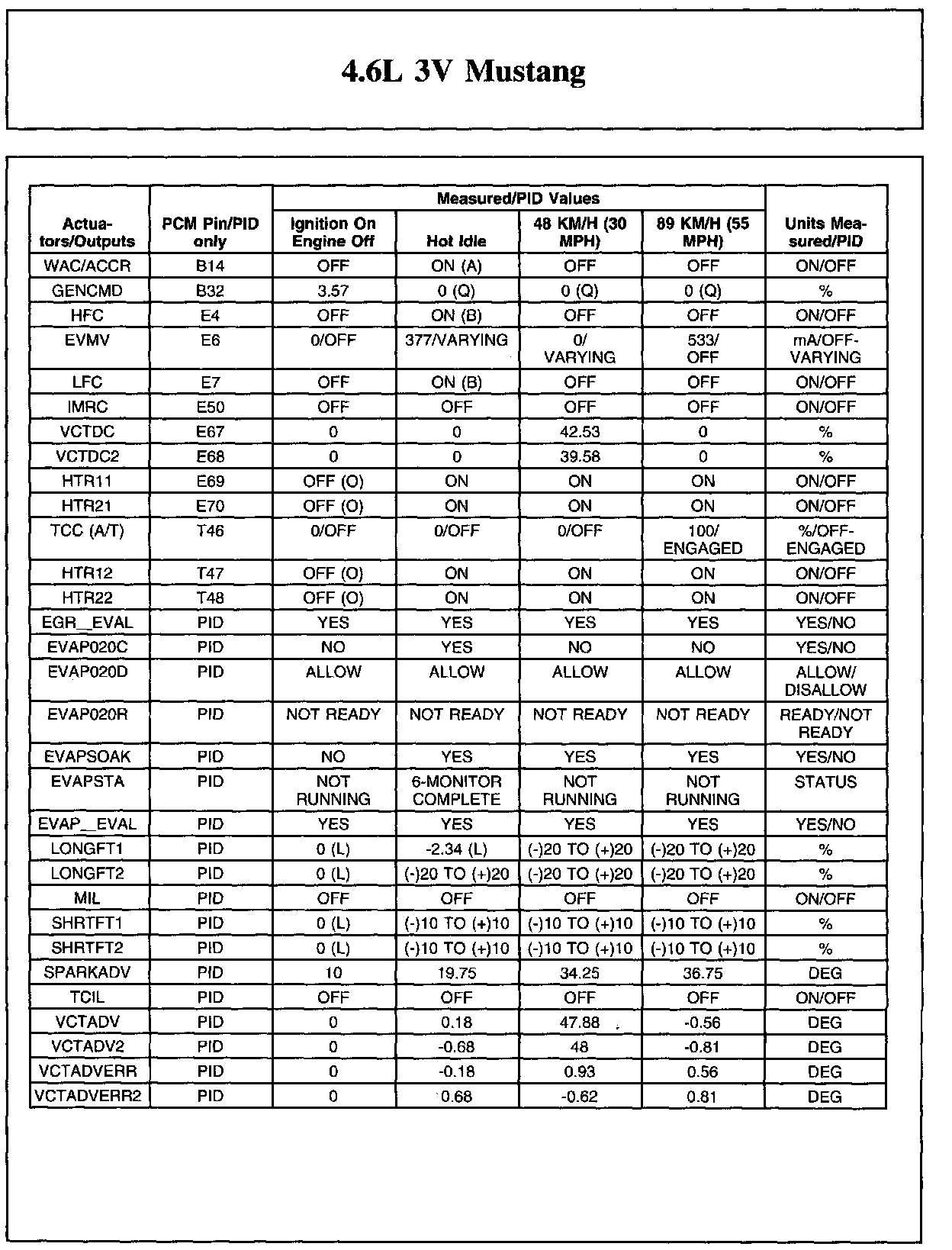

4.6L Mustang (Part 3):

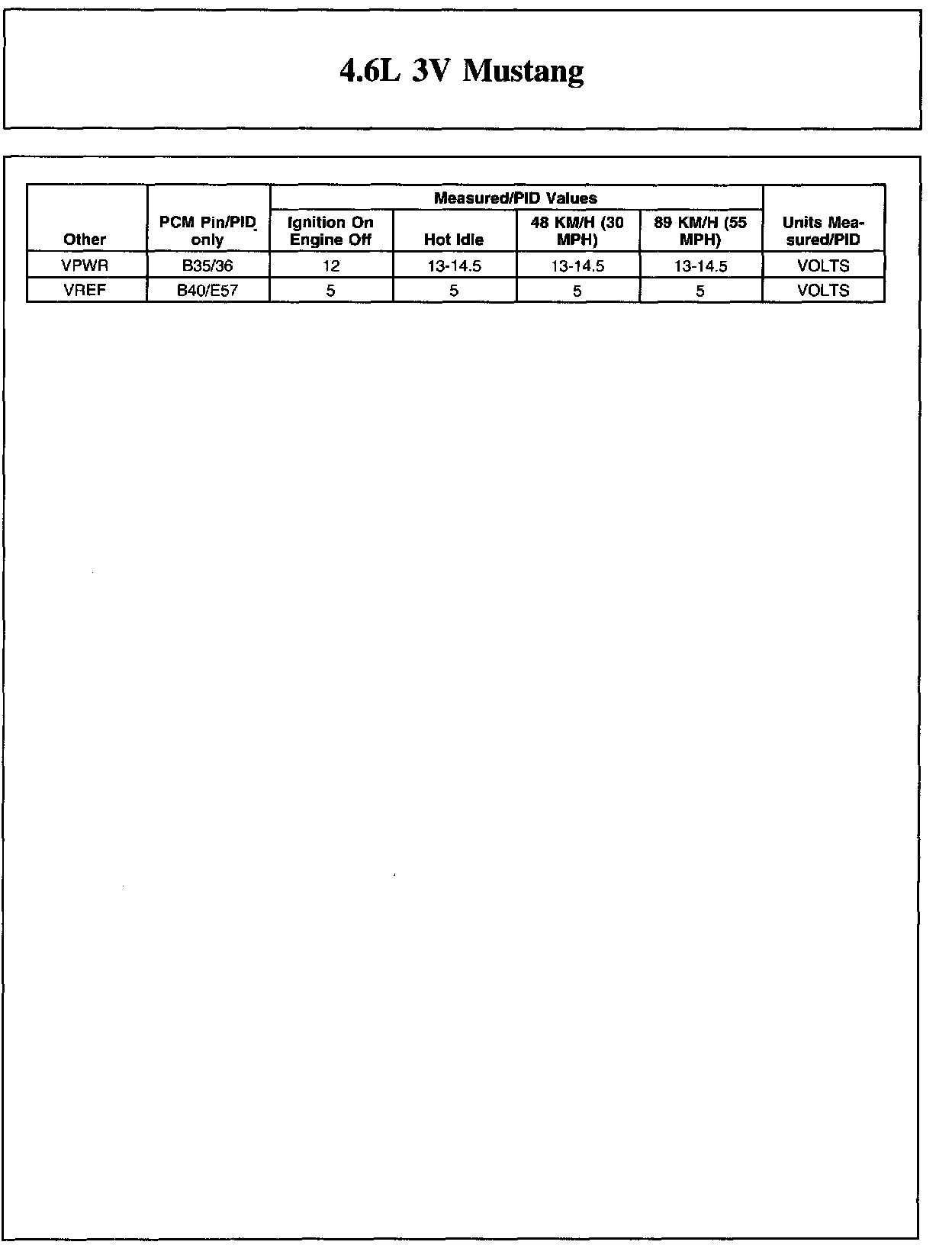

4.6L Mustang (Part 4):
