Typical Diagnostic Reference Values

Typical Diagnostic Reference Values Notes (Part 1):





Typical Diagnostic Reference Values Notes (Part 2):

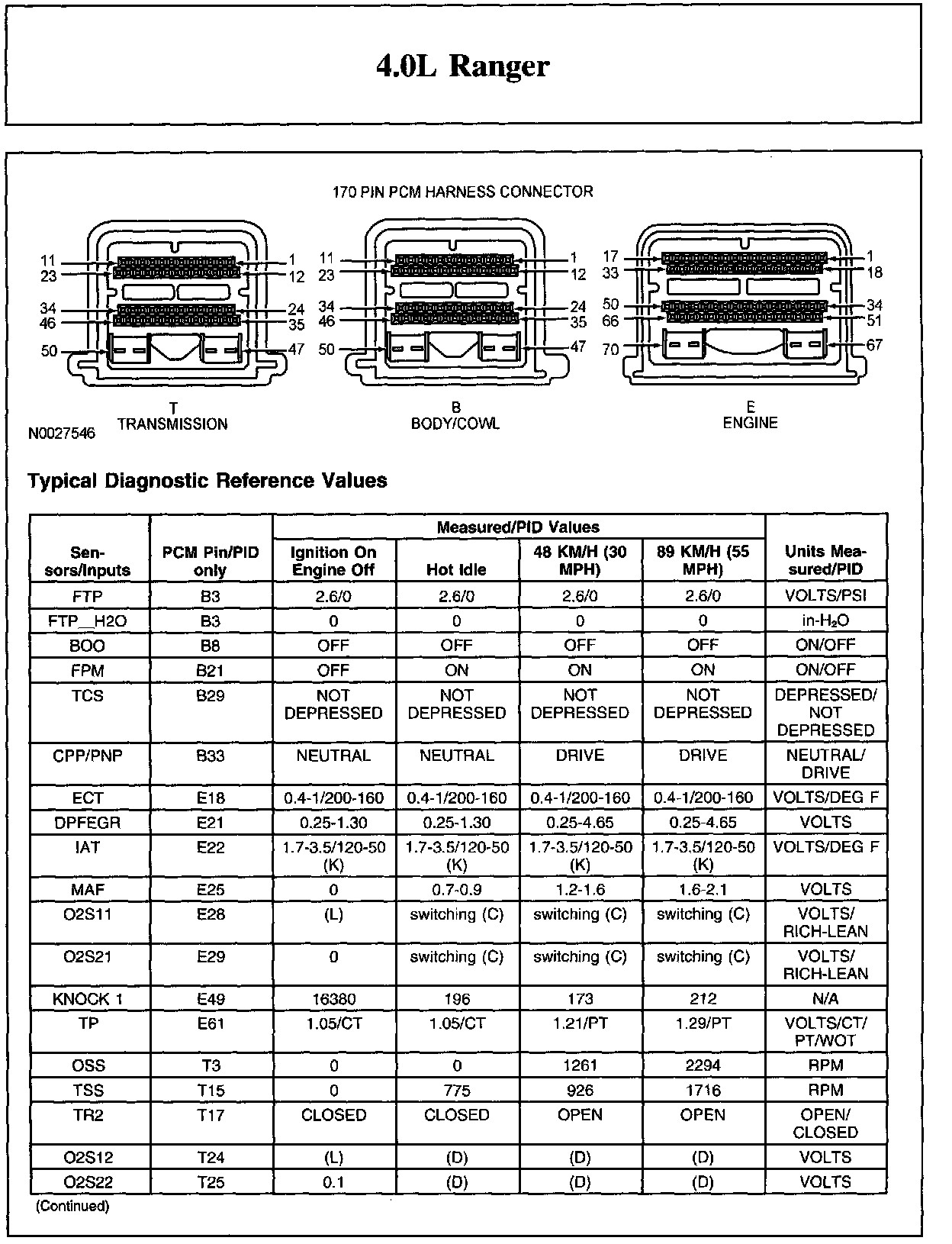

4.0L Ranger (Part 1):

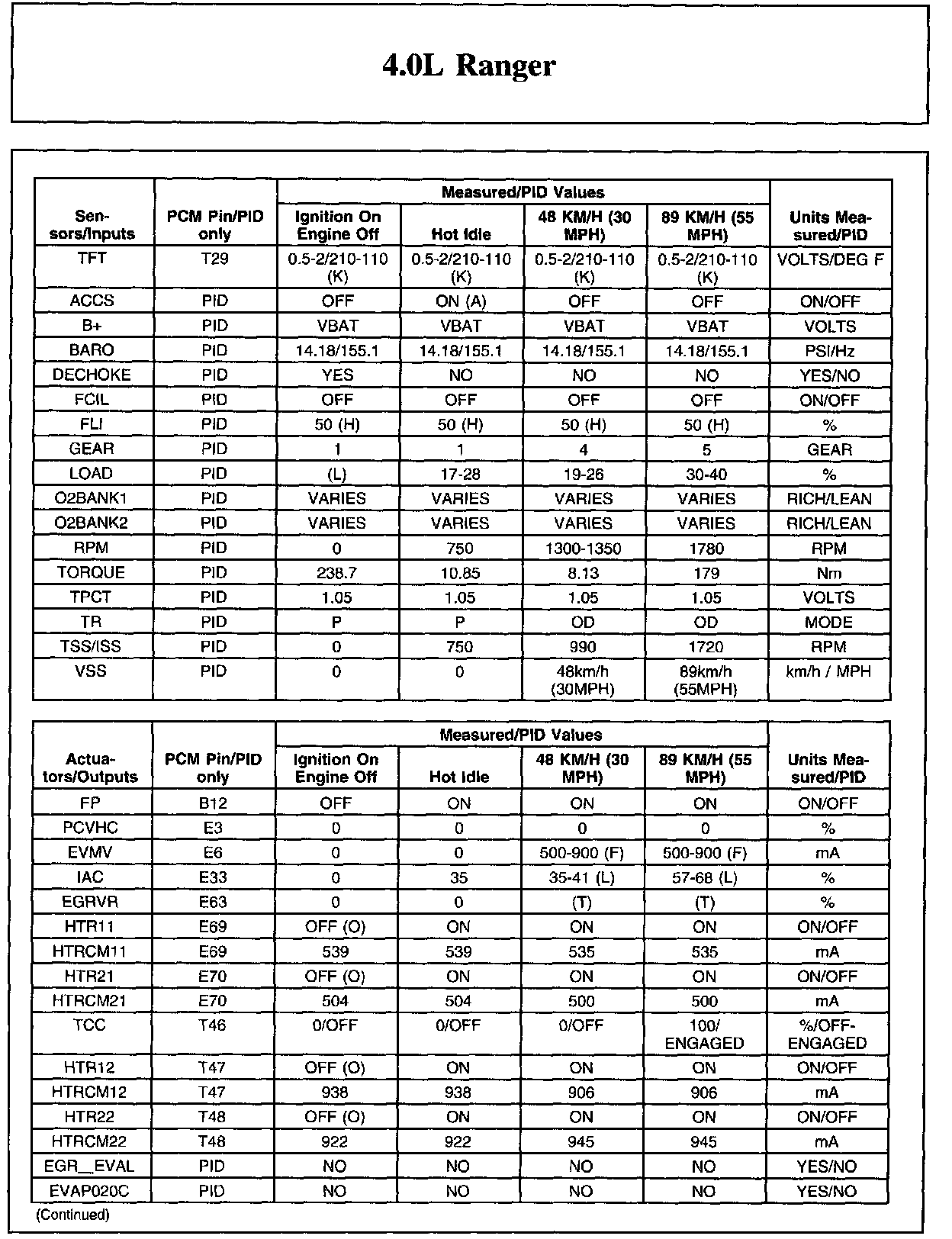

4.0L Ranger (Part 2):

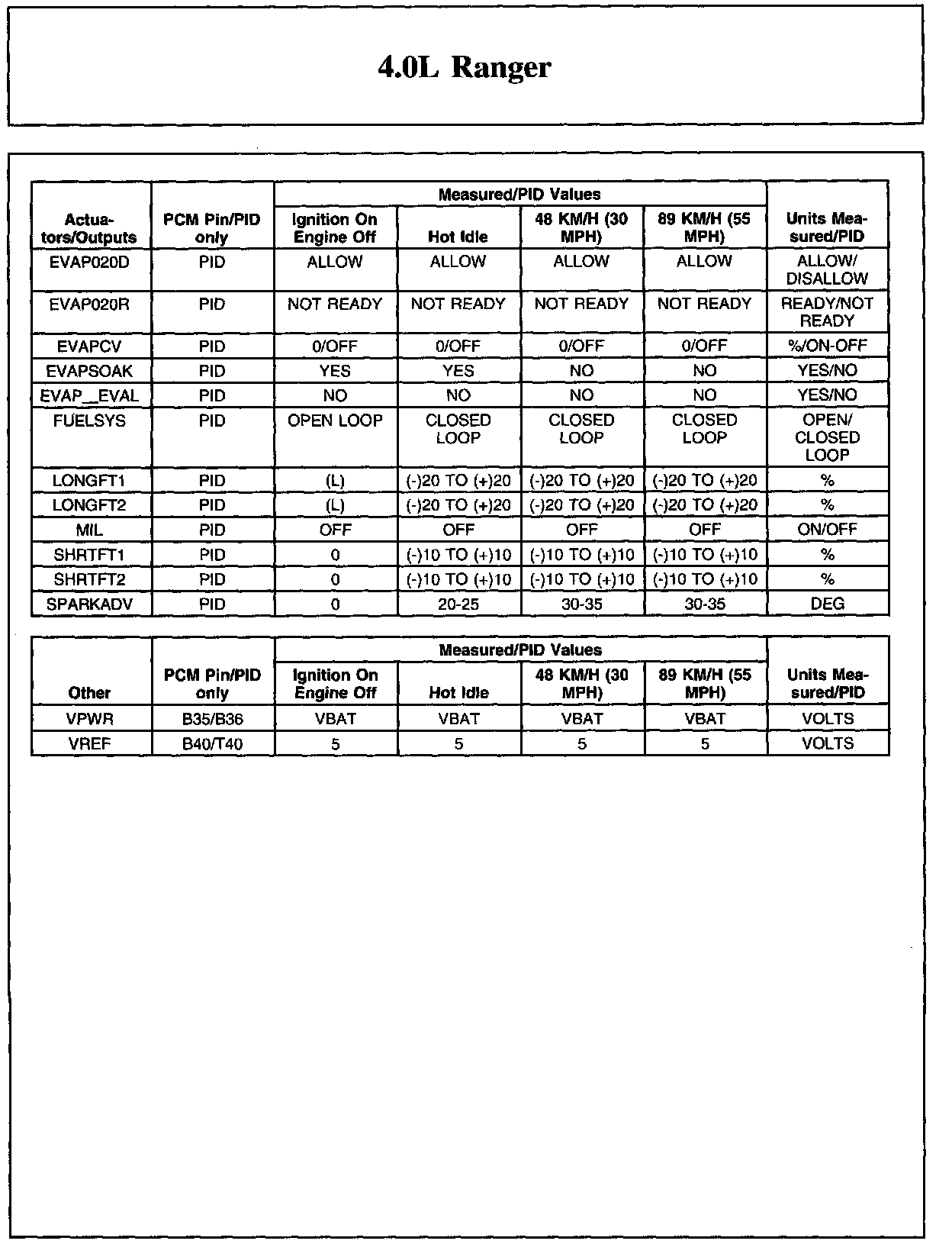

4.0L Ranger (Part 3):
