Home >> Ford >> 2009 >> Taurus AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C498-C671 >> C510
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

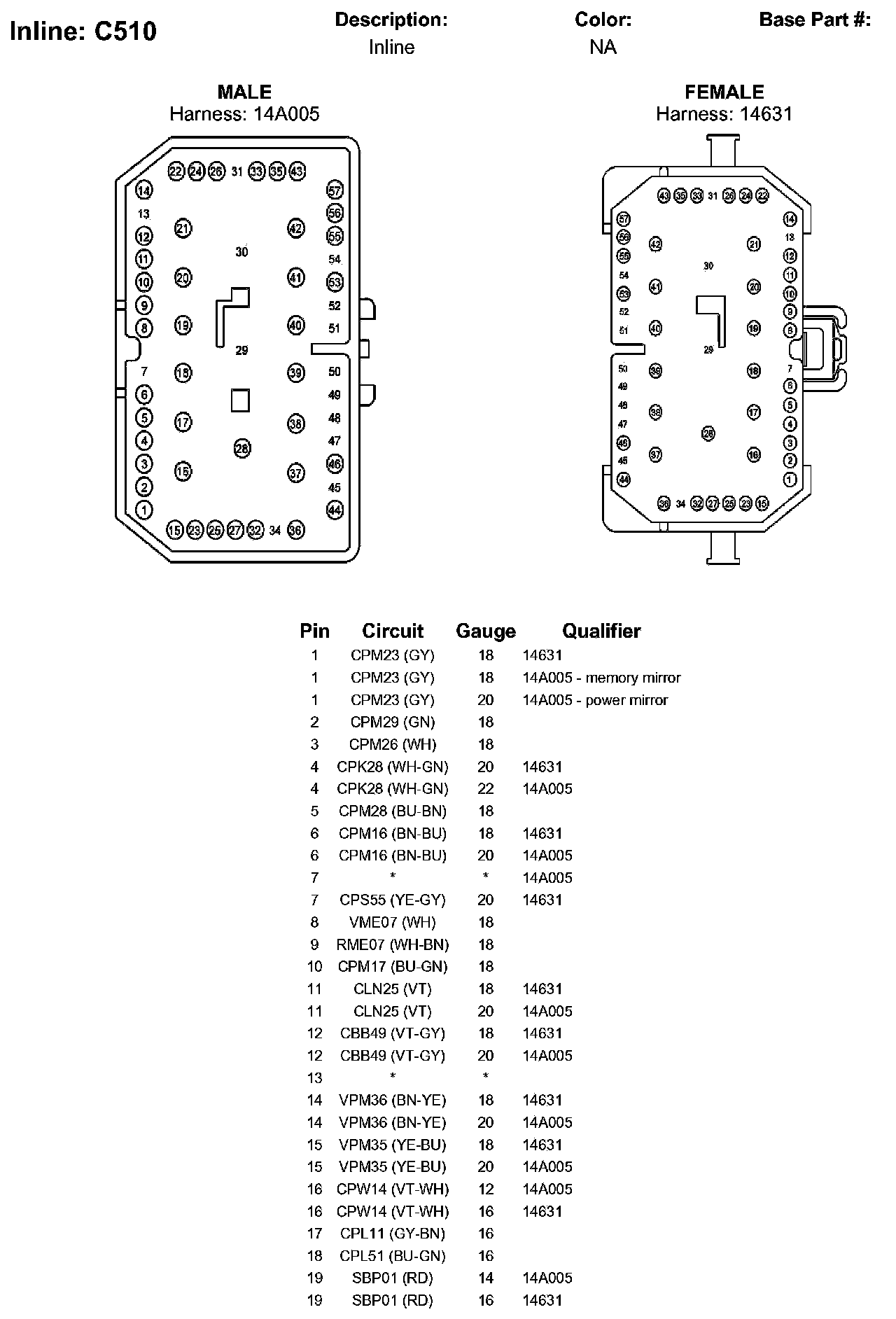

C510

Part 1:



Part 2:



Part 3:
