Rear Door Window Regulator: Service and Repair

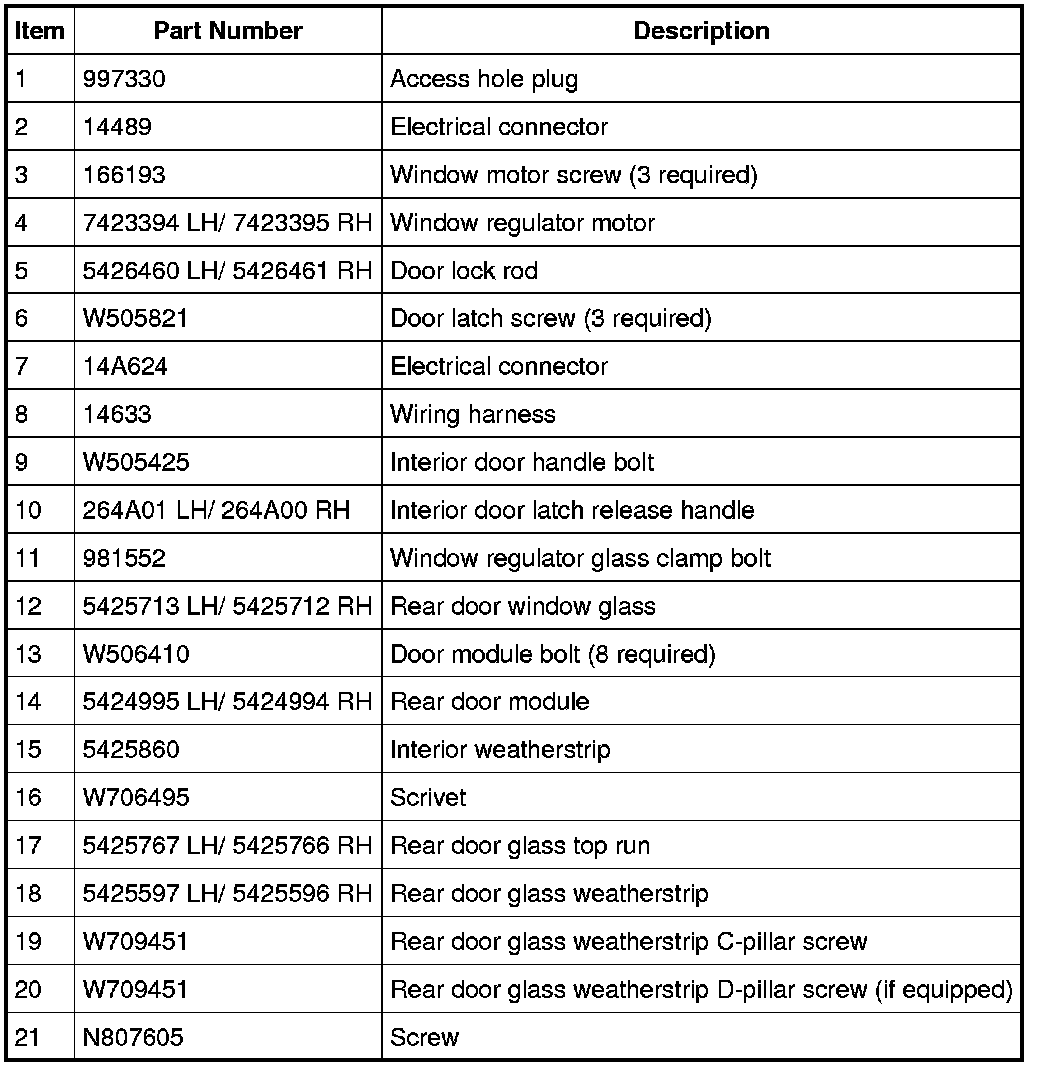

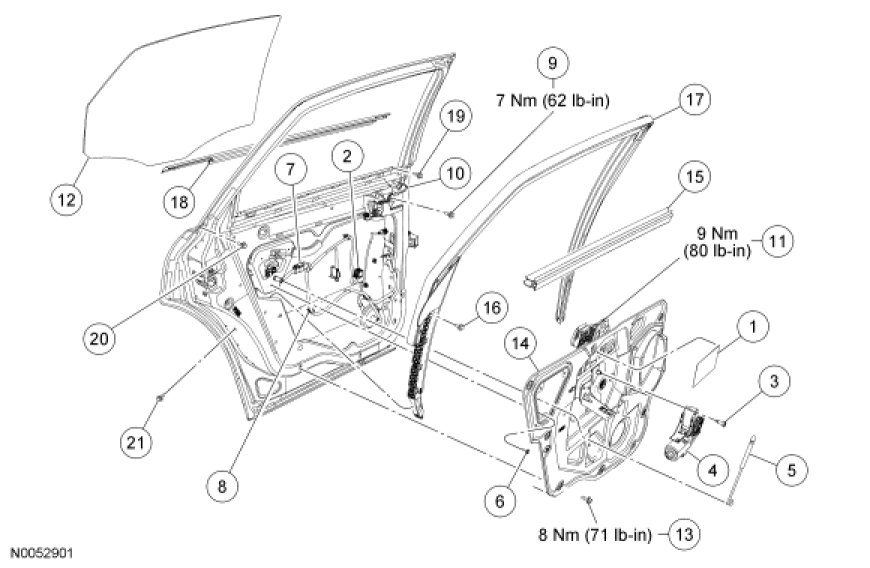

Glass, Frames and Mechanisms - Exploded View, Rear Door

NOTE: Taurus and Sable shown, Taurus X similar.










1. For additional information, refer to the procedures.
