4X4 Control Module: Notes

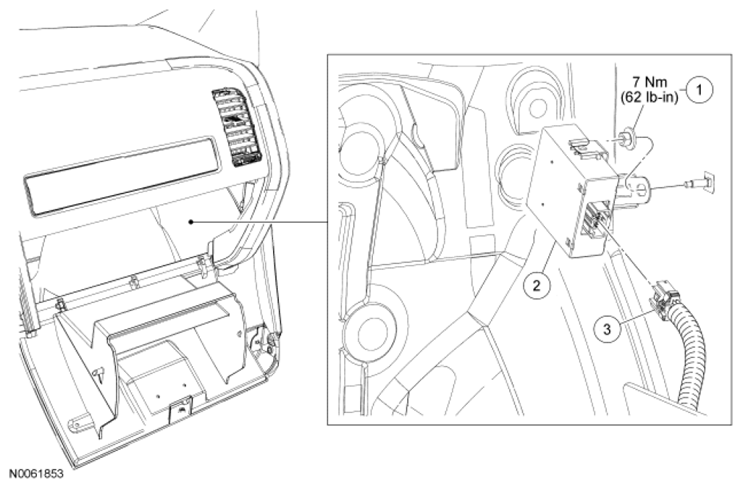

Fig 1: 4X4 Control Module Replacement Components With Torque Specifications
G06505250Courtesy of FORD MOTOR CO.
DESCRIPTION CHART

Item Part Number Description
1 N621906 4X4 control module nut
2 7E453 4X4 control module and bracket
3 - Electrical connector (part of 14A005)
