Power Window Switch: Service and Repair

Window Control Switch

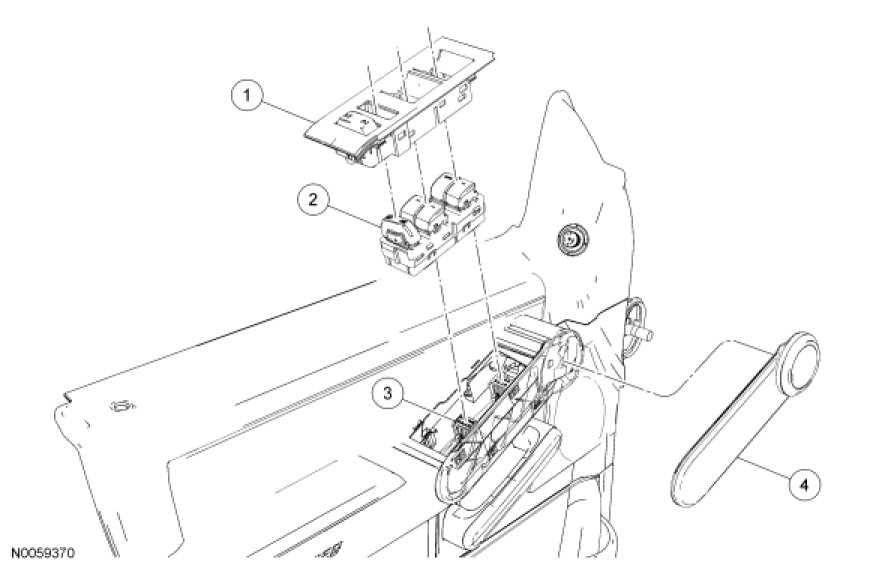

Removal and Installation

1. Remove the interior door handle cover.

2. Lift the window control switch bezel upward to release the clips.

3. Disconnect the window control switch electrical connectors from the window control switch.

4. Disconnect the window control switch from the window control switch bezel to remove.

5. To install, reverse the removal procedure.
