Symptom Chart - Climate Control System




Climate Control System

Symptom Chart - Climate Control System

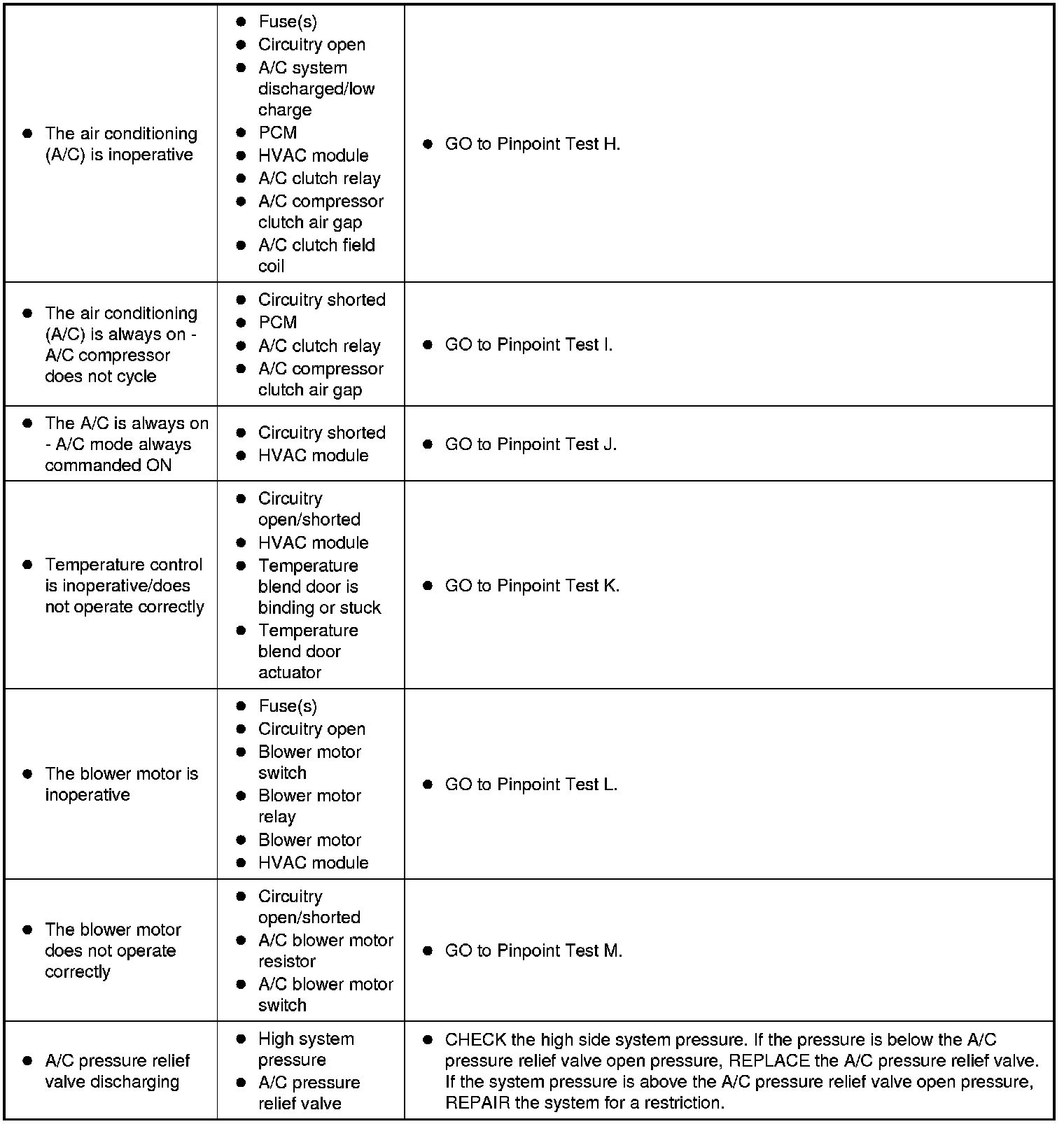

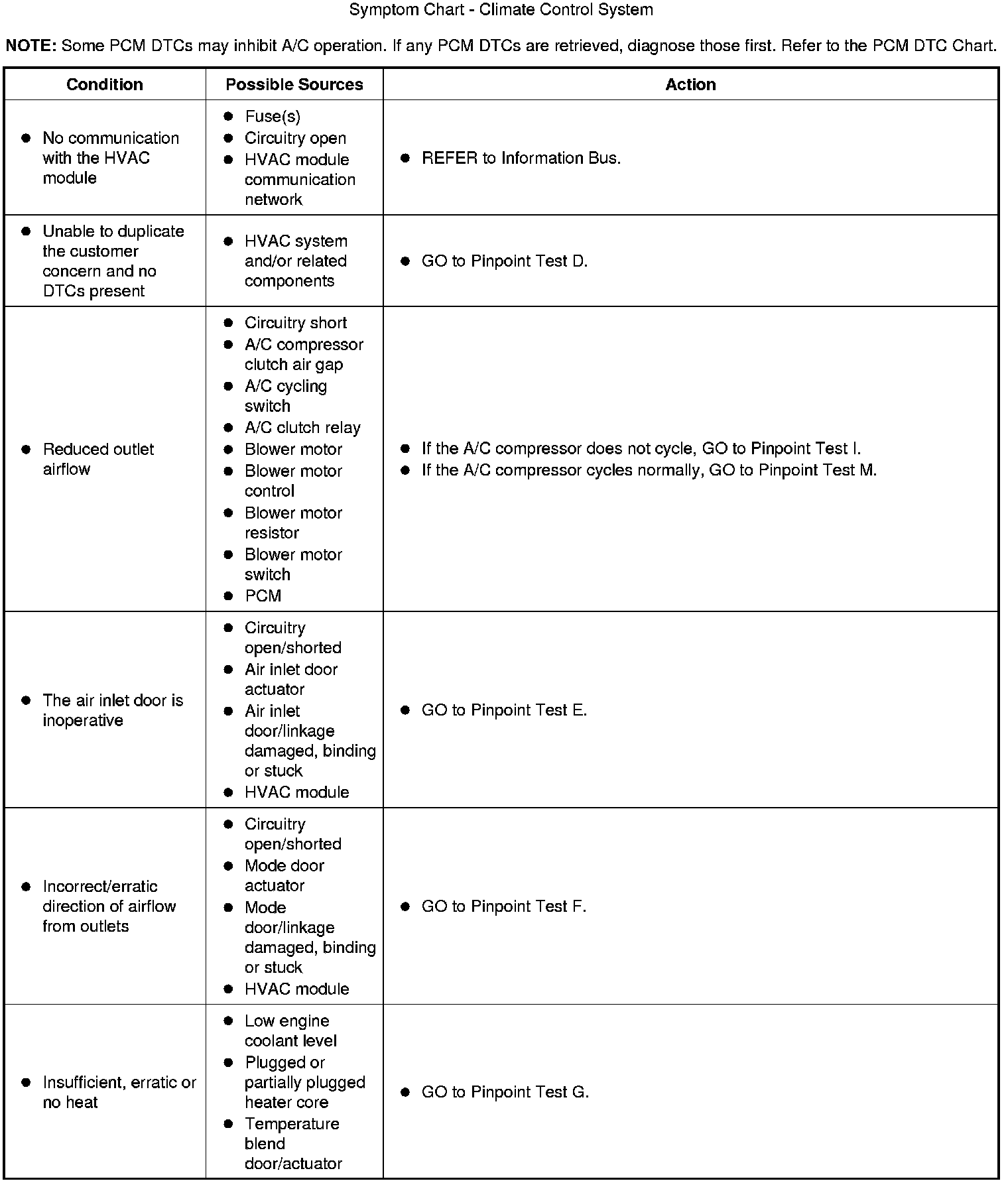

Symptom Chart - Climate Control System (Part 1):





Symptom Chart - Climate Control System (Part 2):





Symptom Chart - Climate Control System (Part 3):
