Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature (ECT) Sensor - 4.0L SOHC

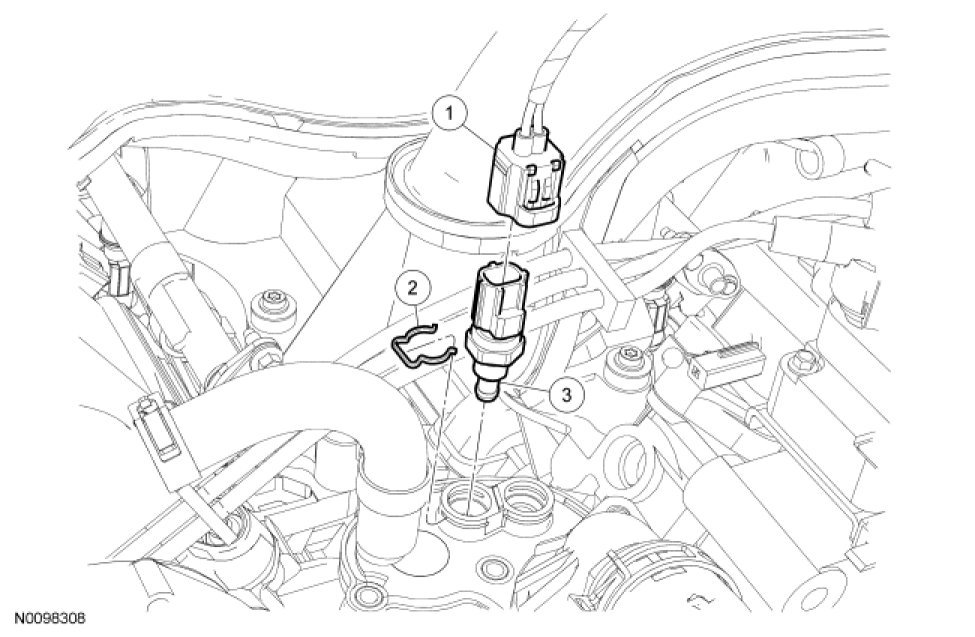

Removal and Installation

1. Drain the cooling system. For additional information, refer to Cooling System &/or Engine Block Heater.

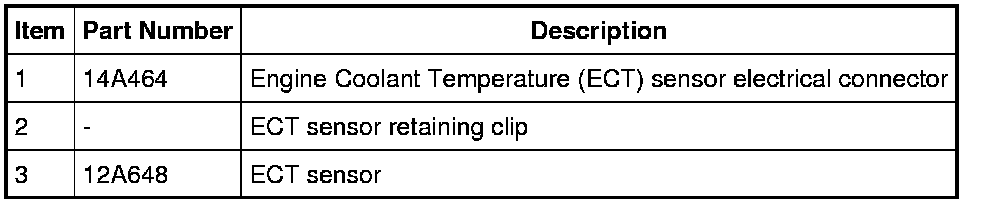

2. Disconnect the Engine Coolant Temperature (ECT) sensor electrical connector.

3. Remove the retaining clip and the ECT sensor.

4. To install, reverse the removal procedure.

5. Fill and bleed the cooling system. For additional information, refer to Cooling System &/or Engine Block Heater.
