Intake Manifold

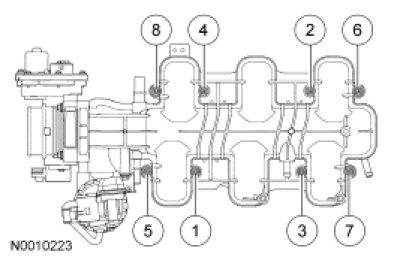

Position the intake manifold and install the 8 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).
