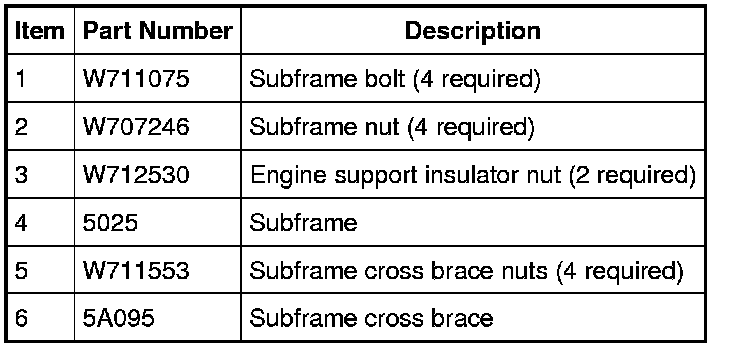

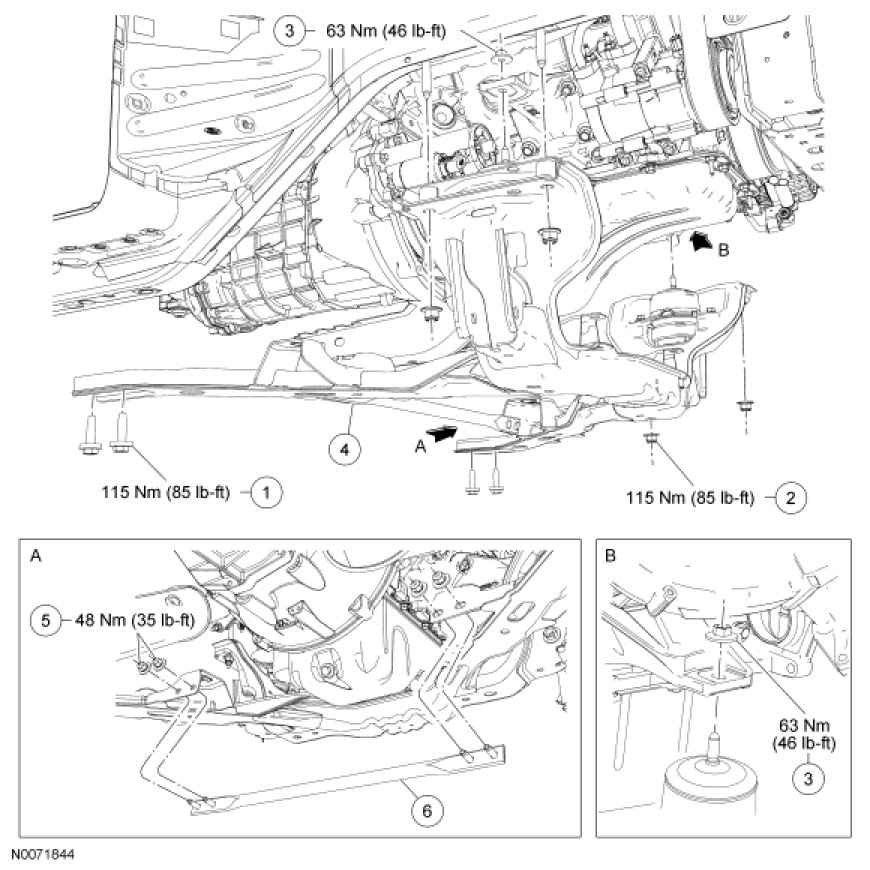

Engine Subframe and Engine Insulators - Exploded View




Engine Lubrication Components - Exploded View


Engine Subframe and Engine Insulators
