In-Vehicle Temperature Sensor

In-Vehicle Temperature Sensor









Removal and Installation

1. Remove the center instrument panel finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

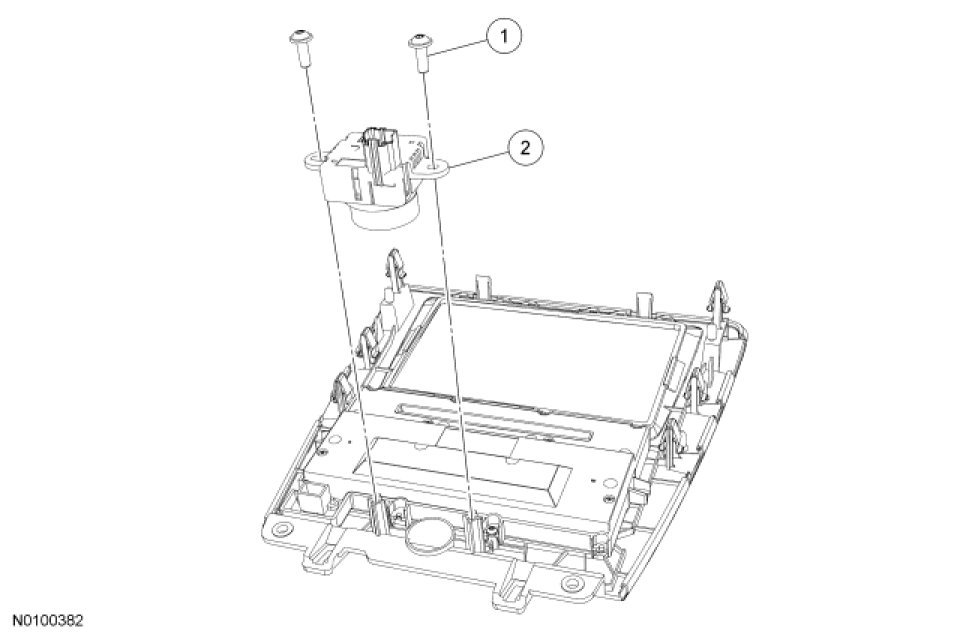

2. Remove the 2 in-vehicle temperature sensor screws.

3. Remove the in-vehicle temperature sensor.

4. To install, reverse the removal procedure.
