LEMON Manuals: Even more car manuals for everyone: 1960-2025
Home >> Ford >> 2010 >> Ranger 2WD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C144
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

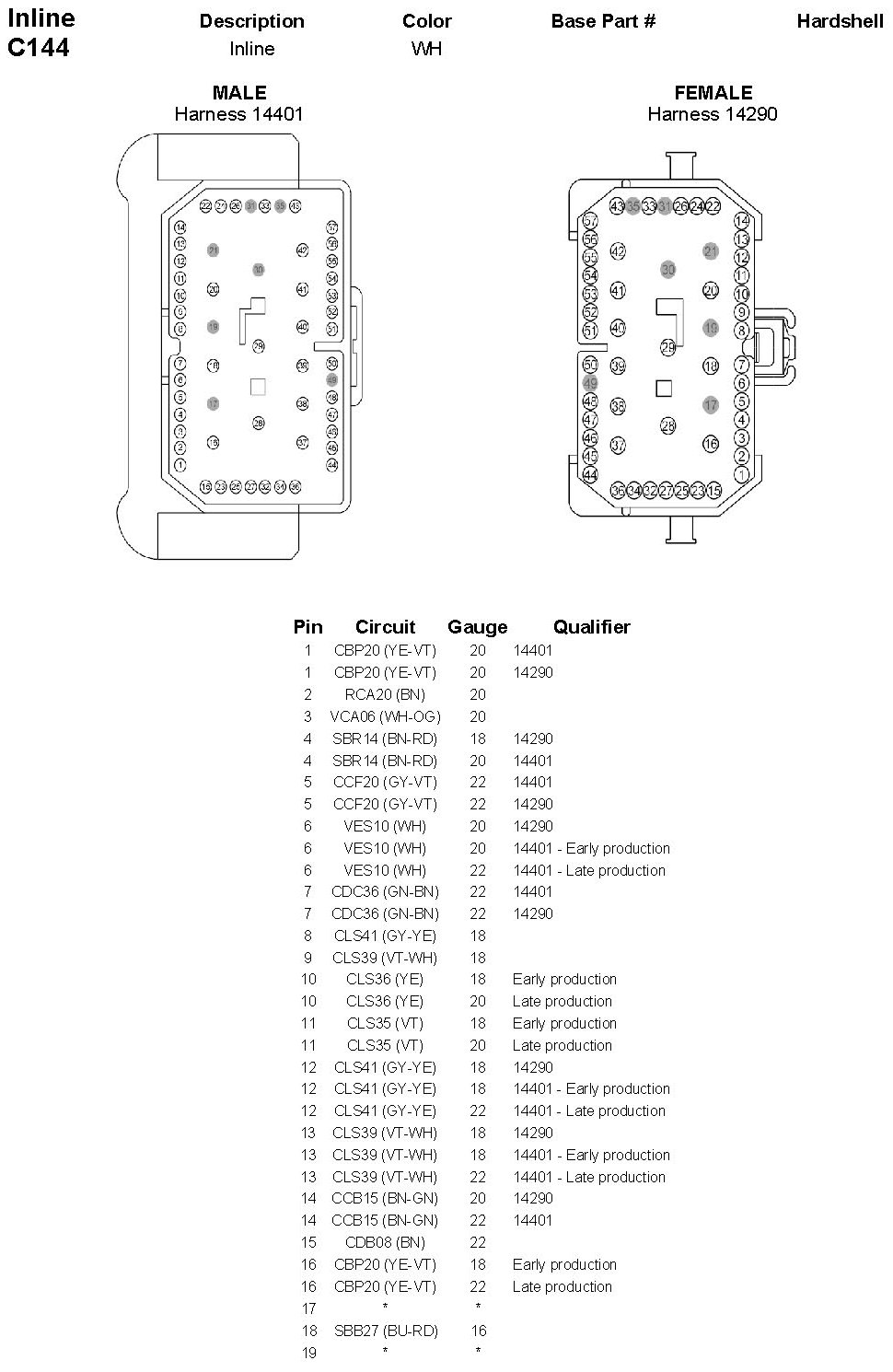

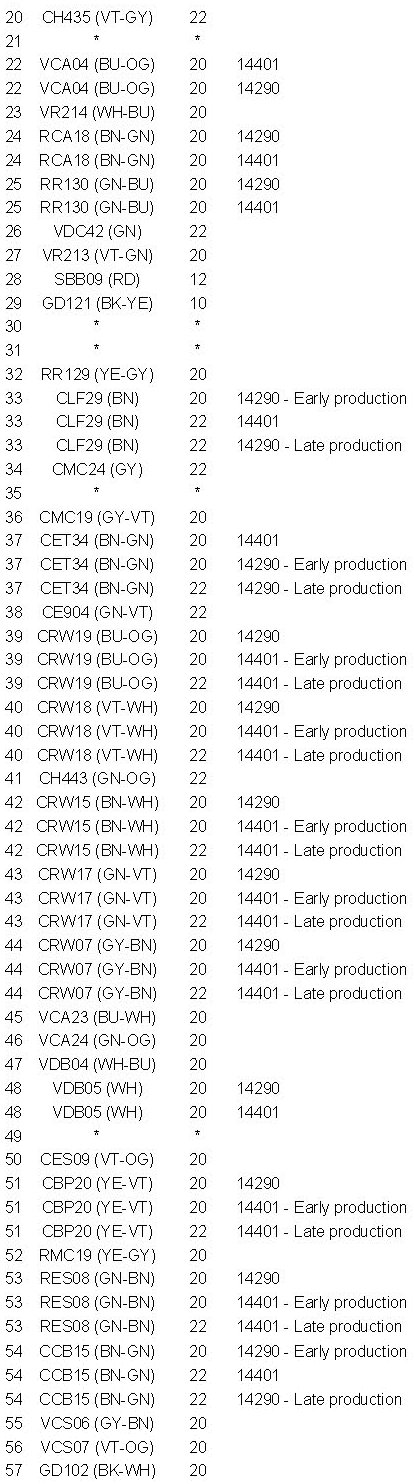

C144
