System Diagram
Parking Brake - Exploded View

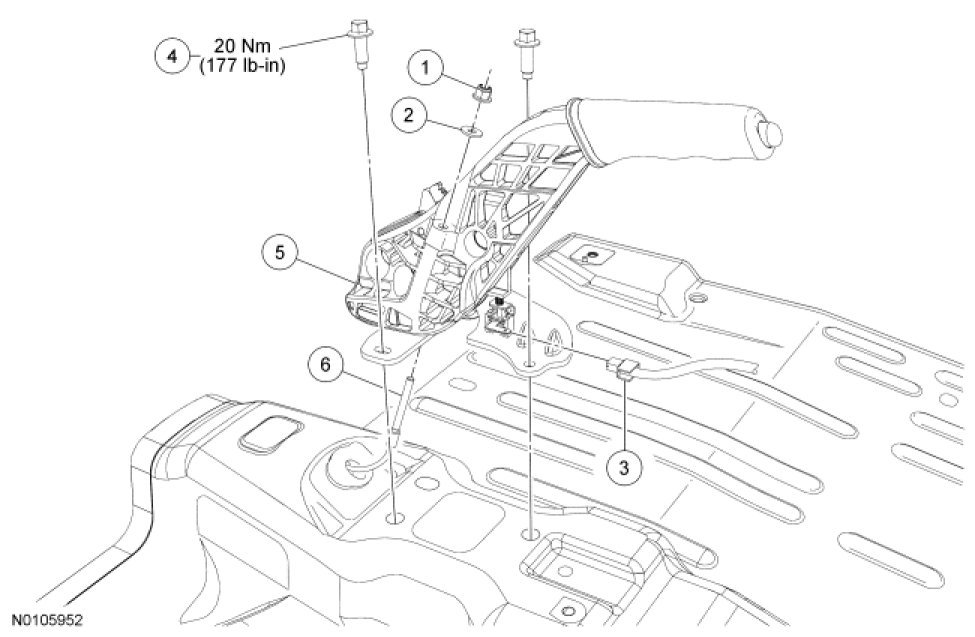

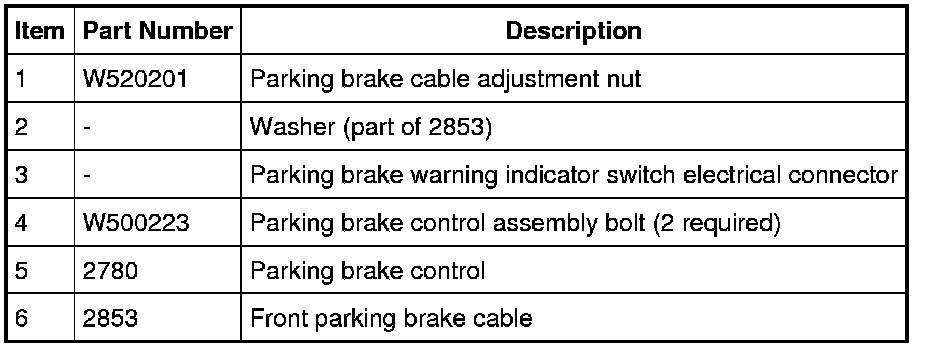

Parking Brake (View 1 of 3)

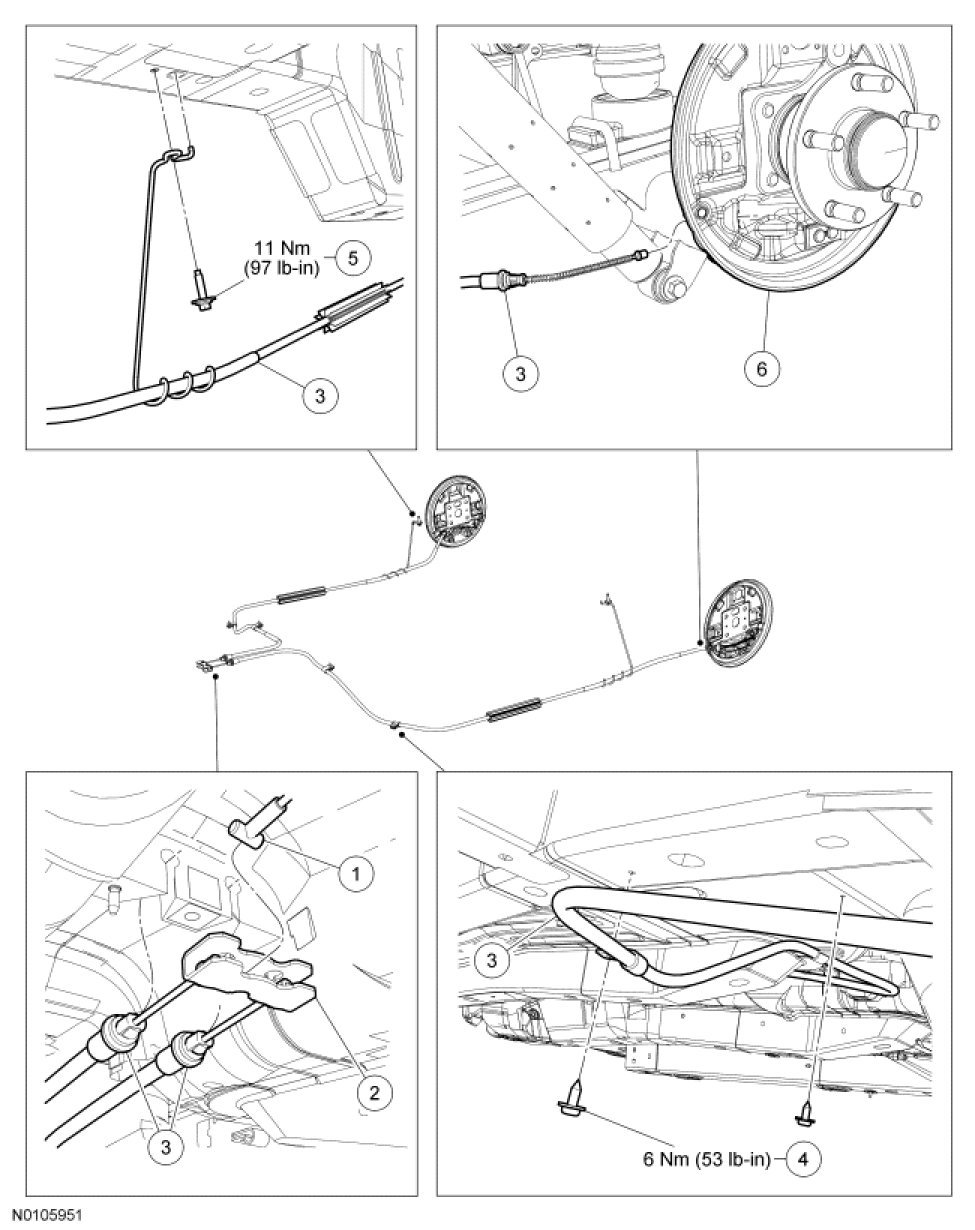

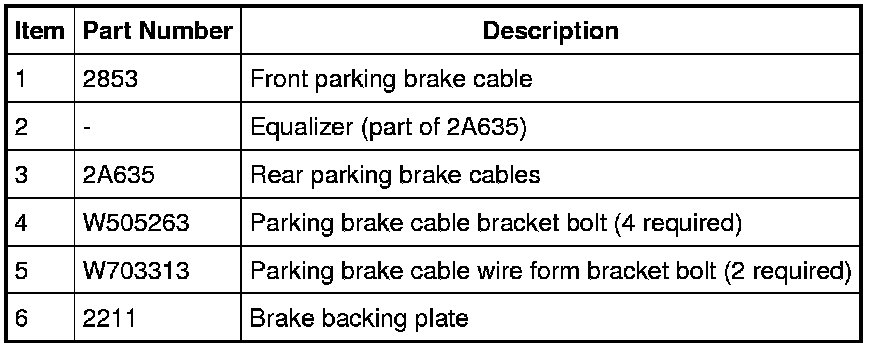

Parking Brake (View 2 of 3)
Parking Brake (View 3 of 3)
