Dimmer Switch: Service and Repair

Instrument Panel Dimmer Switch









Removal and Installation

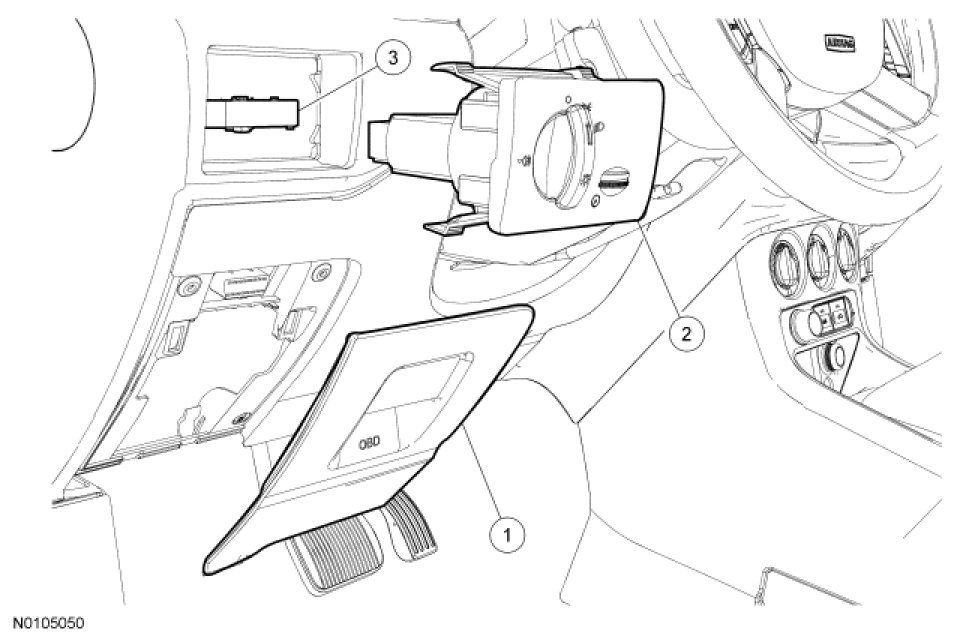

1. Remove the fuse access cover.

2. NOTE: The instrument panel dimmer switch is removed by reaching through the fuse cover opening and pushing it from behind.

Release the clips and remove the instrument panel dimmer switch.

- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
