Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
4F27E
>>
Line Pressure Chart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

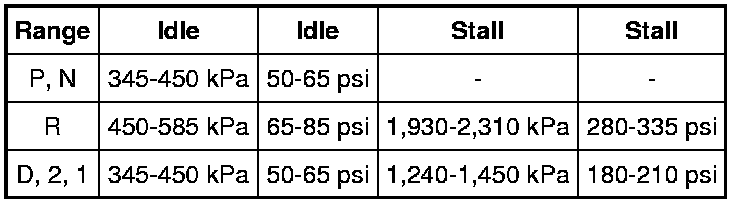

Line Pressure Chart
Line Pressure Chart
