Keyless Entry Receiver: Service and Repair




Antenna









Removal and Installation

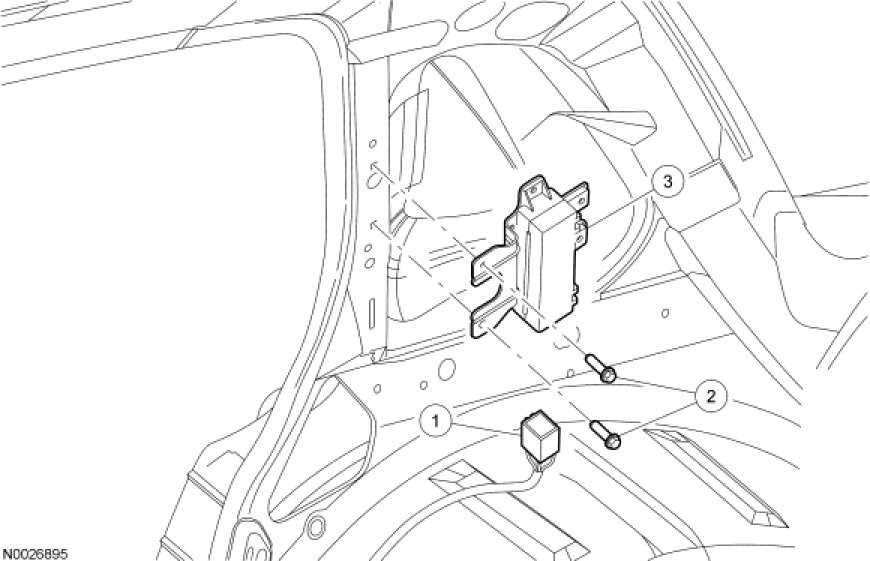

1. Remove the RH rear quarter trim panel. For additional information, refer to Interior Trim and Ornamentation Quarter Trim Panel.

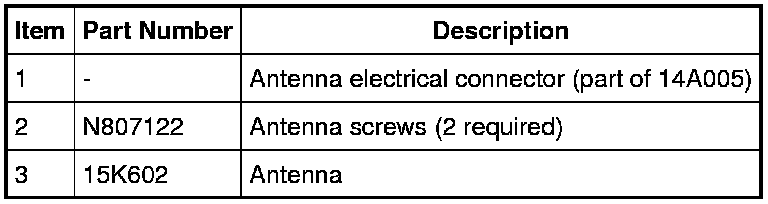

2. Disconnect the antenna electrical connector.

3. Remove the 2 screws and the antenna.

4. To install, reverse the removal procedure.
