Home >> Ford >> 2011 >> Crown Victoria V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> C228A HVAC Module, EATC
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

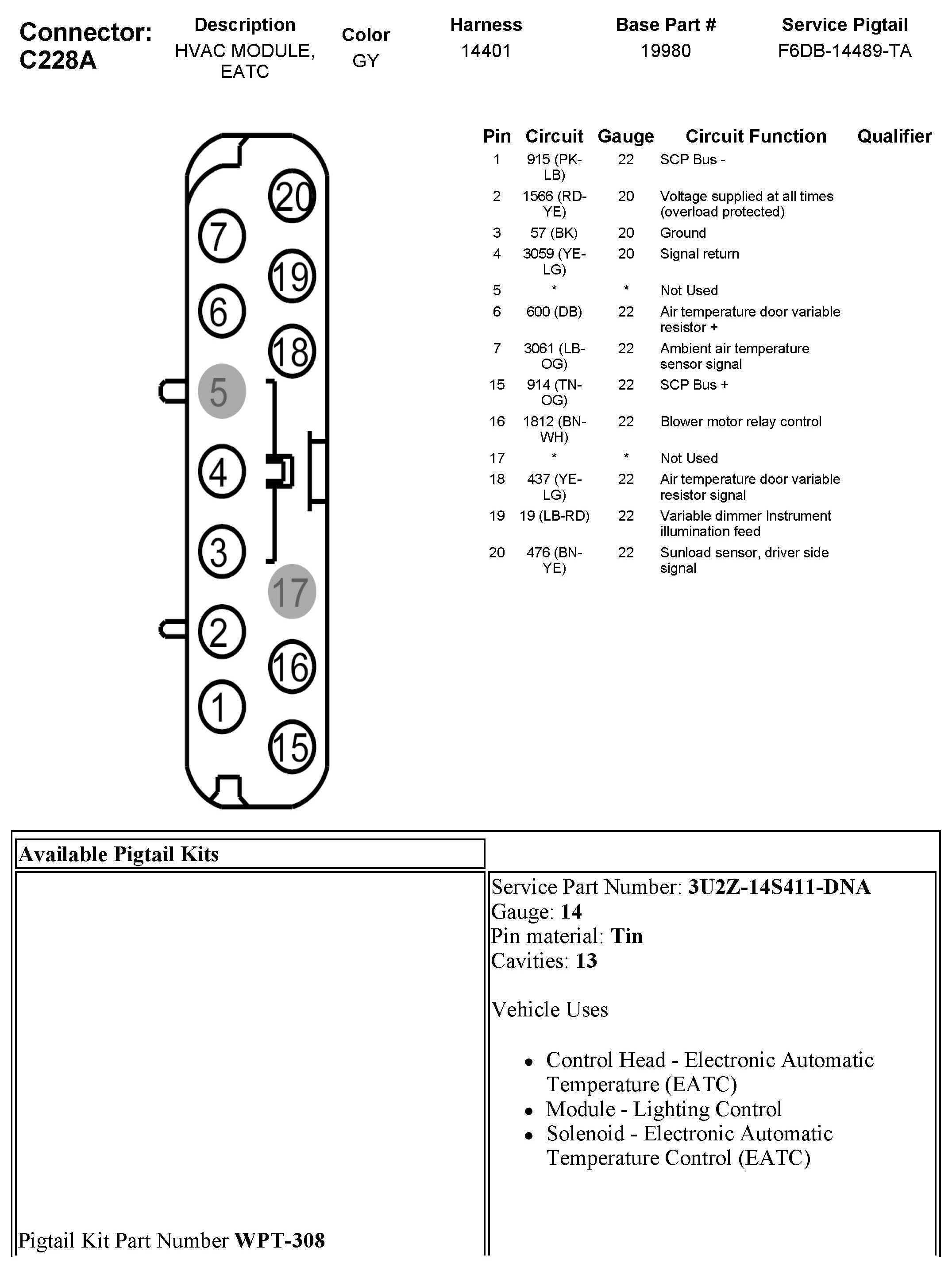

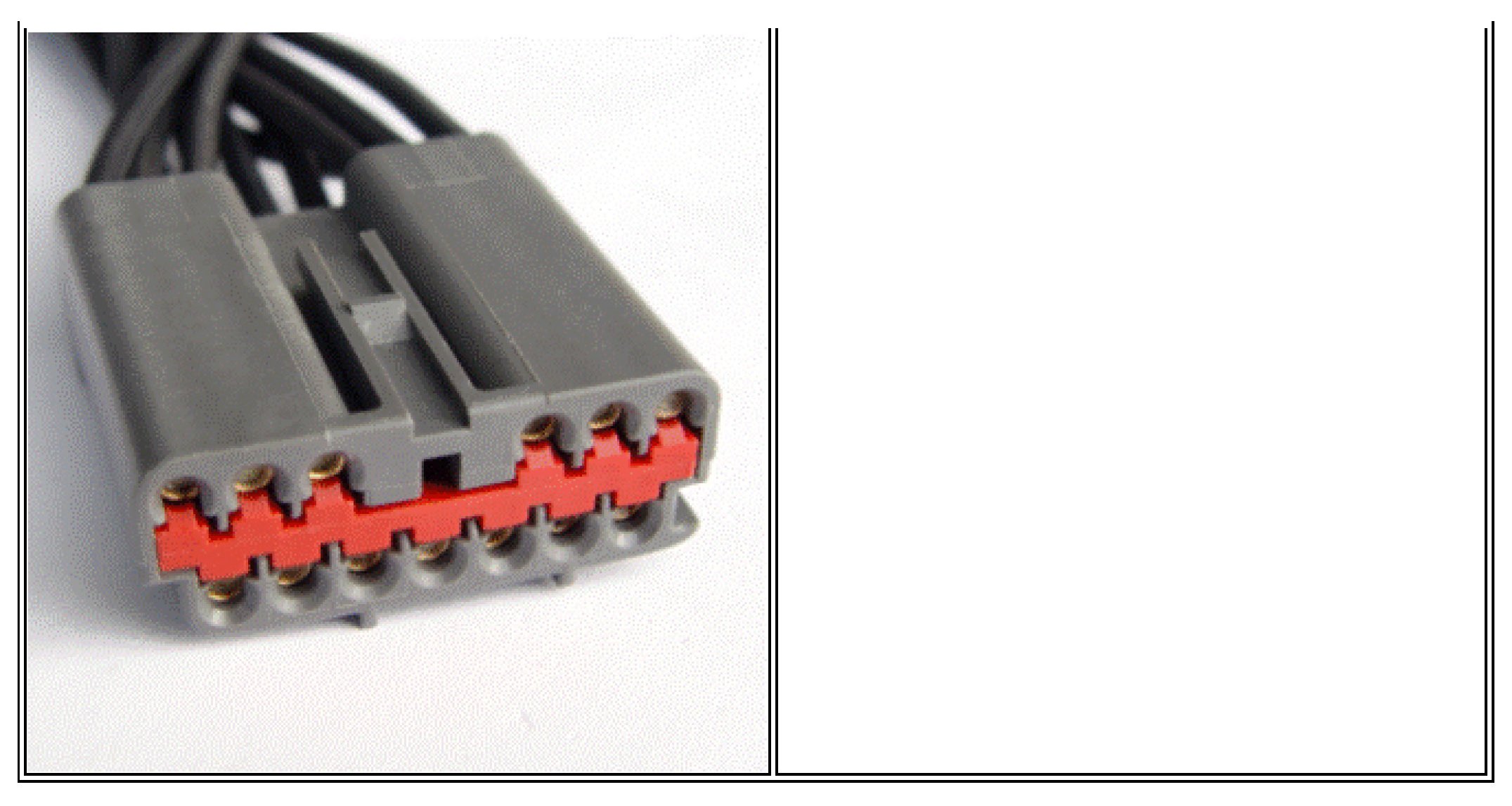

C228A HVAC Module, EATC
