Home
>>
Ford
>>
2011
>>
E 150 V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
C175T Powertrain Control Module (PCM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

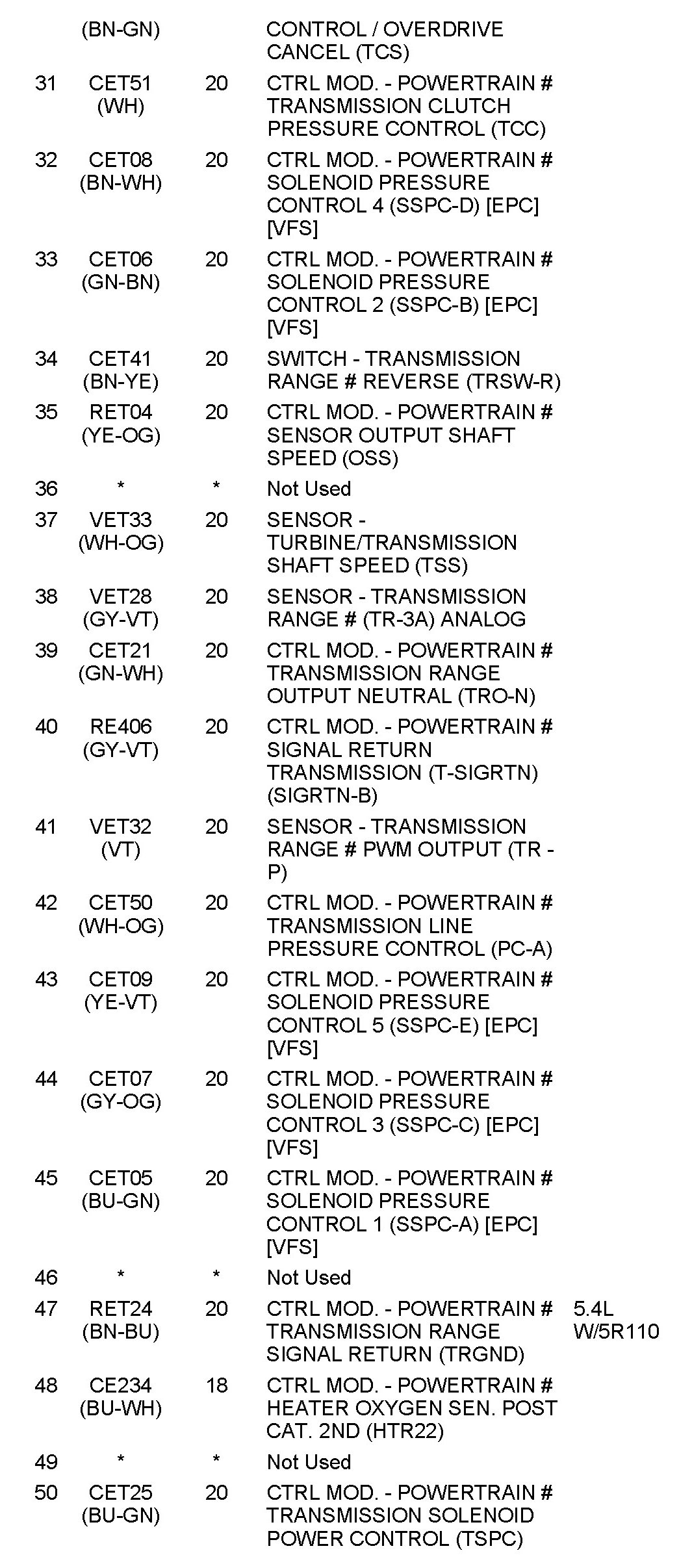

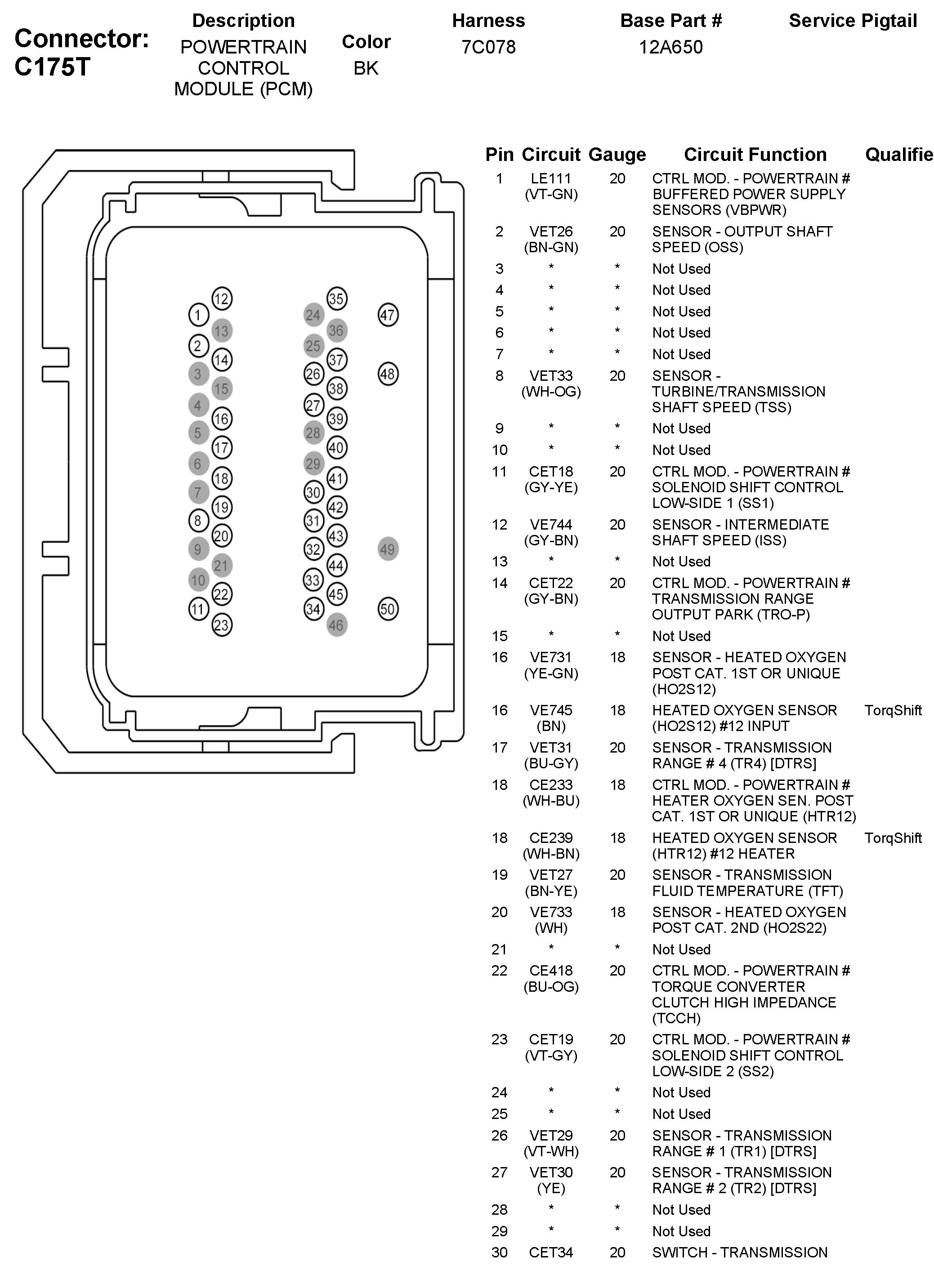

C175T Powertrain Control Module (PCM)
