Home >> Ford >> 2011 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Blind Spot Module >> C4369 Side Obstacle Detection Control Module - Left (SOD-L)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

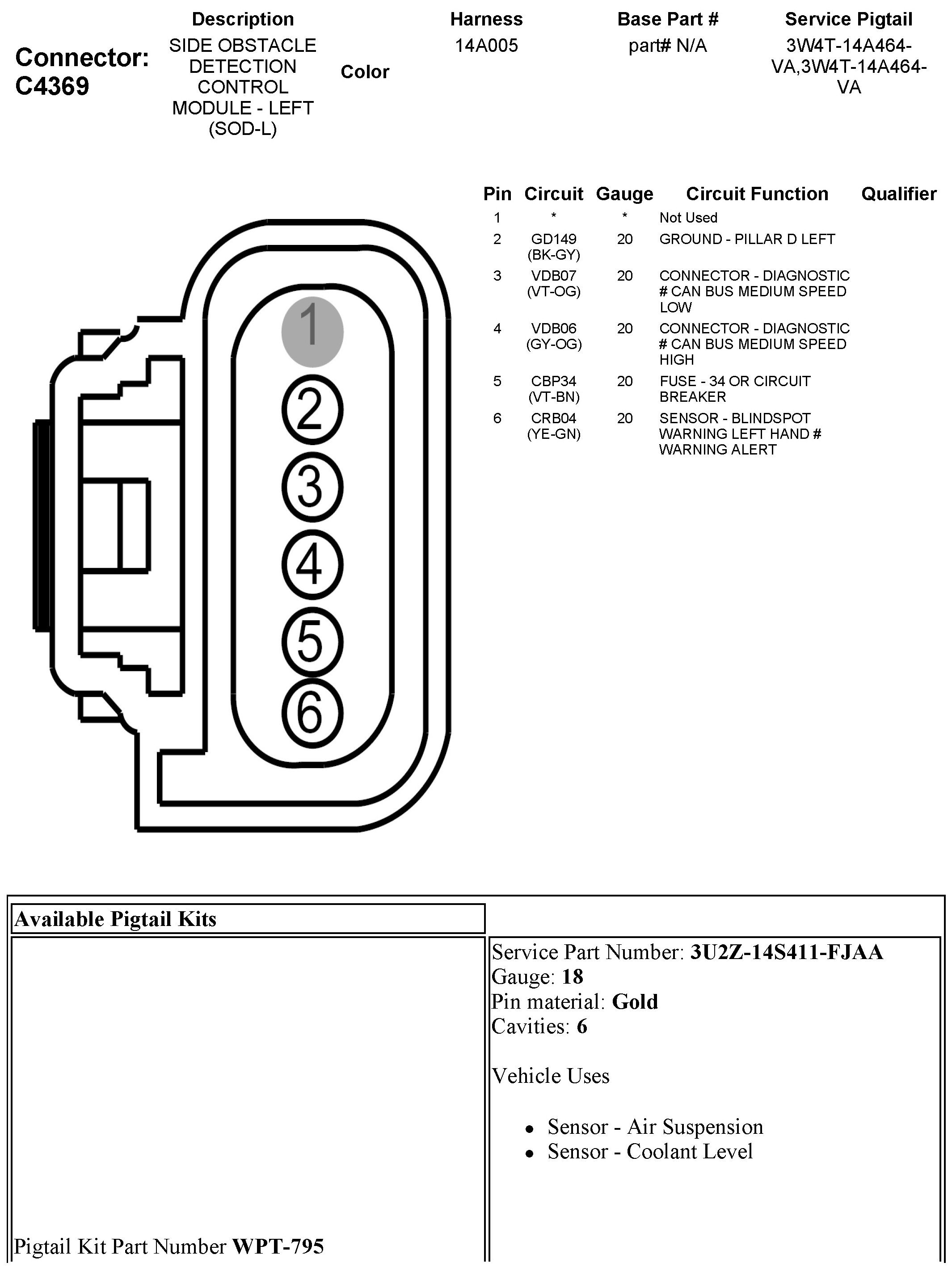

C4369 Side Obstacle Detection Control Module - Left (SOD-L)
