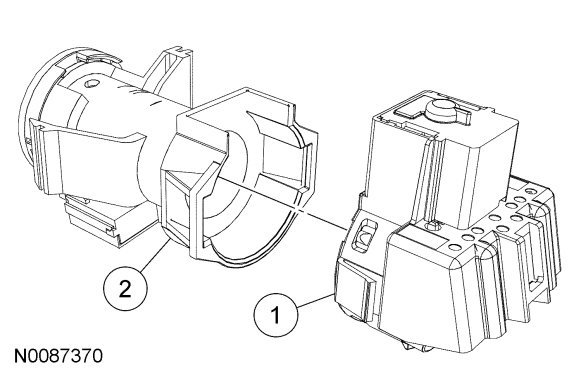

Ignition Lock Cylinder Housing

Ignition Lock Cylinder Housing

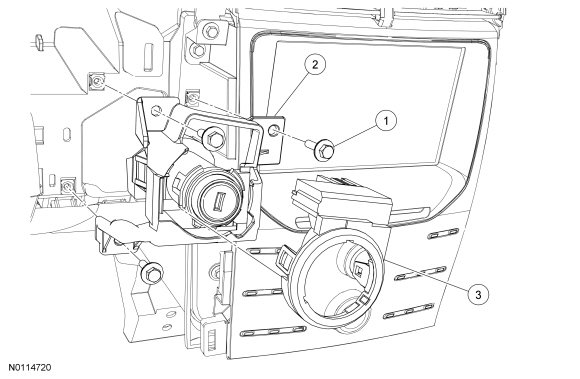

Ignition lock cylinder housing bracket










Ignition lock cylinder housing









Removal and Installation

1. Remove the Passive Anti-Theft System (PATS) transceiver.

2. Remove the lower steering column shroud.

3. Using a flat-blade screwdriver, release the ignition lock cylinder housing retaining tab and push the ignition lock cylinder housing inward.





4. From underneath the instrument panel, remove the ignition lock cylinder housing.
- Disconnect the electrical connector.


5. To install, reverse the removal procedure.
