Wheel Speed Sensor - Rear, Three-Channel: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

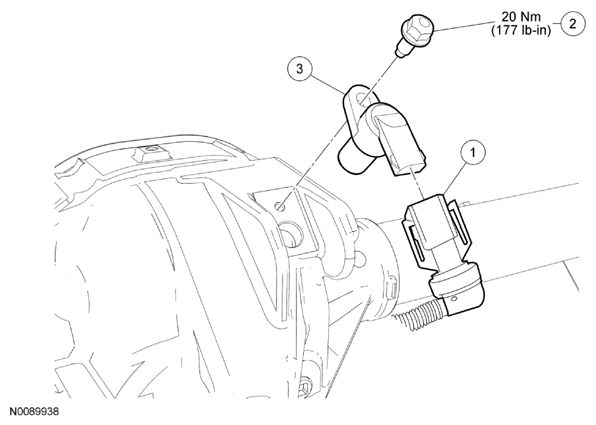

Fig 1: Rear Wheel Speed Sensor Replacement Components With Torque Specifications (Three Channel)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wheel speed sensor electrical connector
2	-	Rear wheel speed sensor bolt (part of 2C204)
3	2C204	Rear wheel speed sensor
