Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

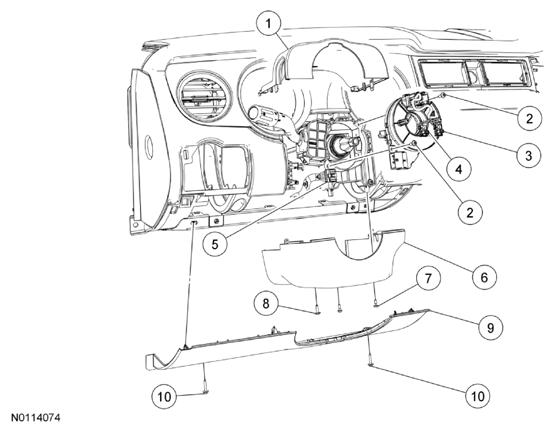

| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | - | Clockspring screws (part of 14A664) (2 required) |
| 3 | - | Driver air bag module electrical connector (part of 14A664) |
| 4 | 14A664 | Clockspring |
| 5 | - | Clockspring electrical connector (part of 14401) |
| 6 | 3530 | Lower steering column shroud |
| 7 | W707281 | Lower steering column shroud screw (2 required) |
| 8 | W706731 | Lower steering column shroud screw |
| 9 | 04459 | Steering column opening trim panel |
| 10 | - | Steering column opening trim panel screws |
