Home >> Ford >> 2011 >> Escape 2WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> C3338 Accessory Protocol Interface Module (APIM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

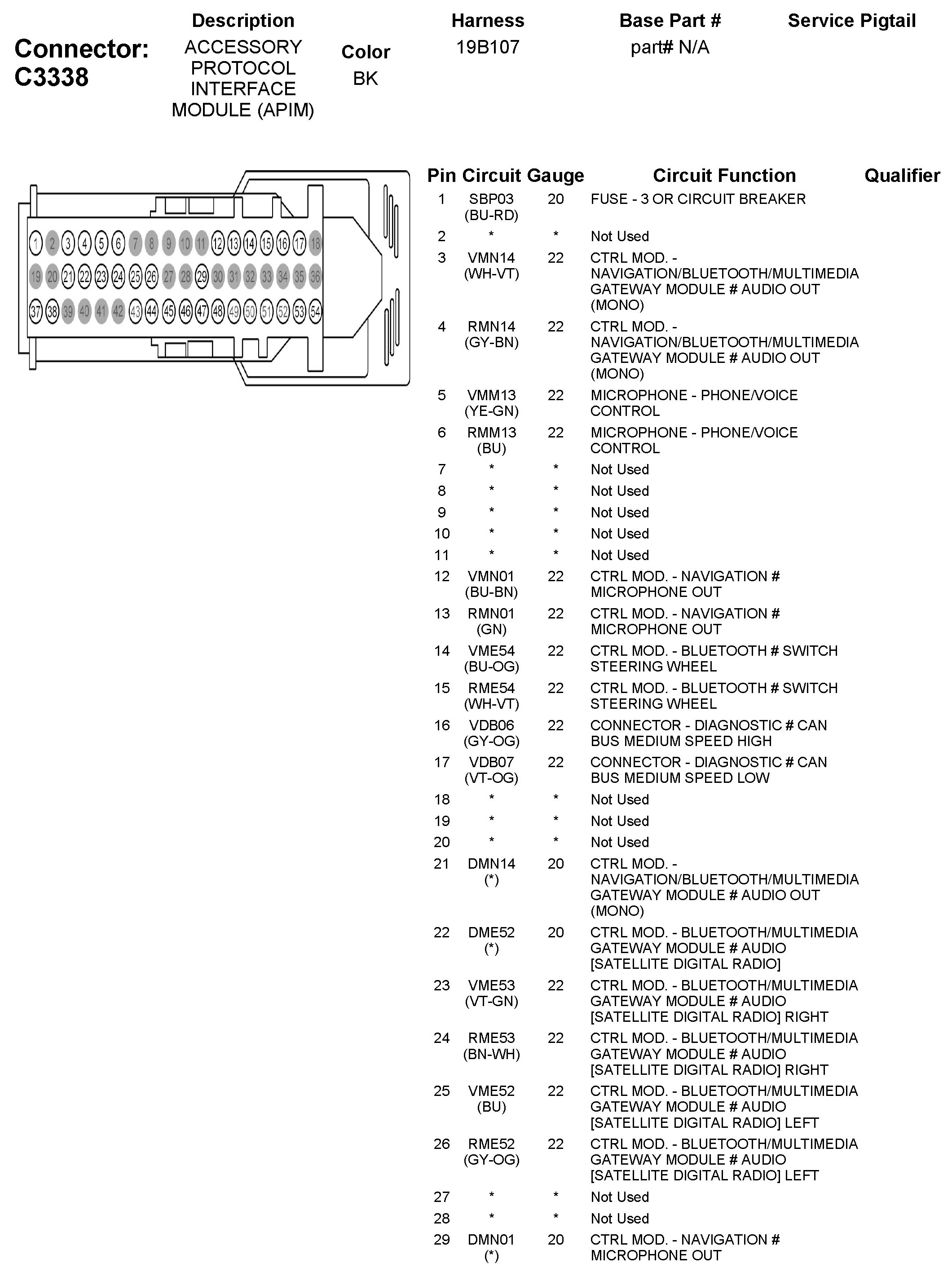

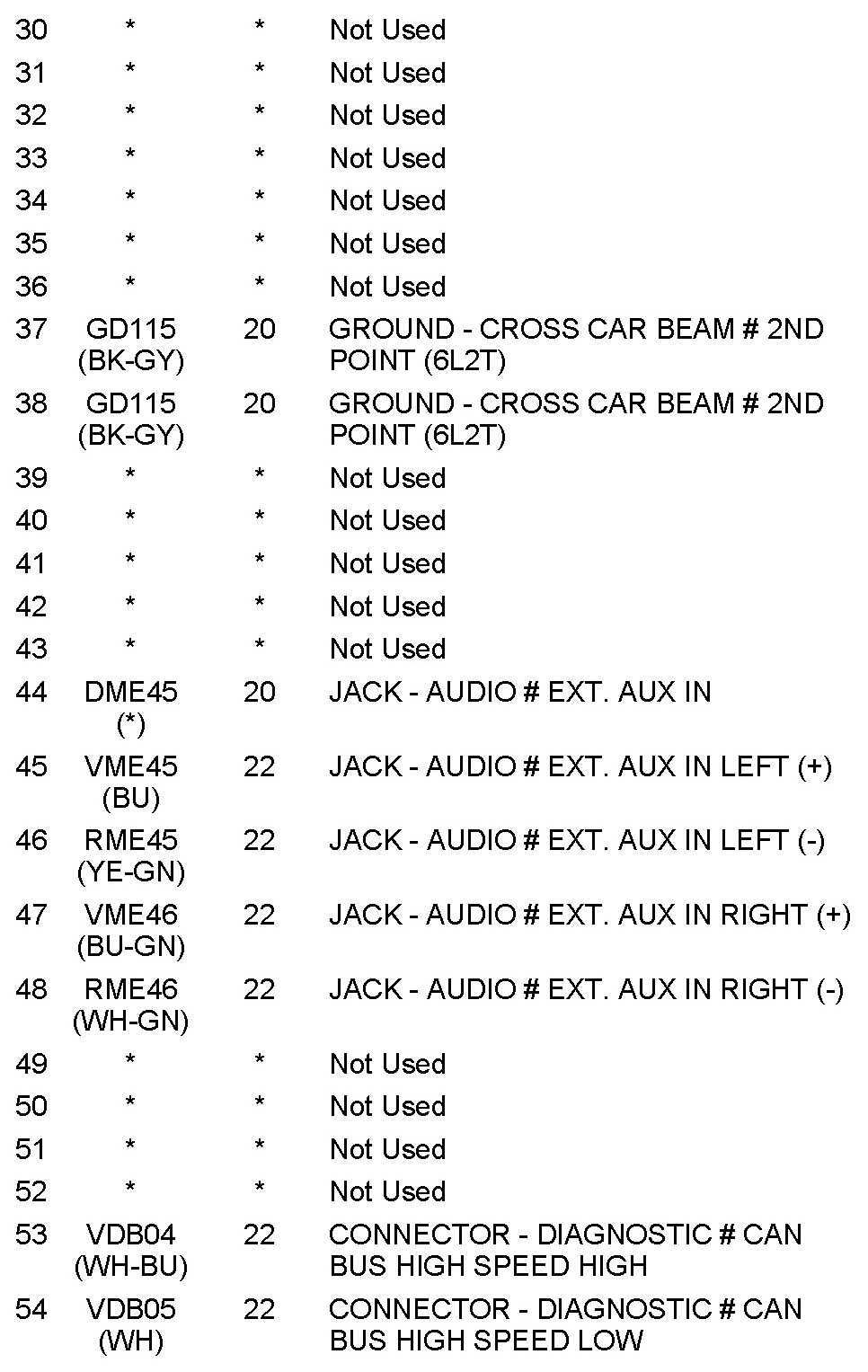

C3338 Accessory Protocol Interface Module (APIM)
