Control Module HVAC
>>
C2357A HVAC Module-EMTC
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

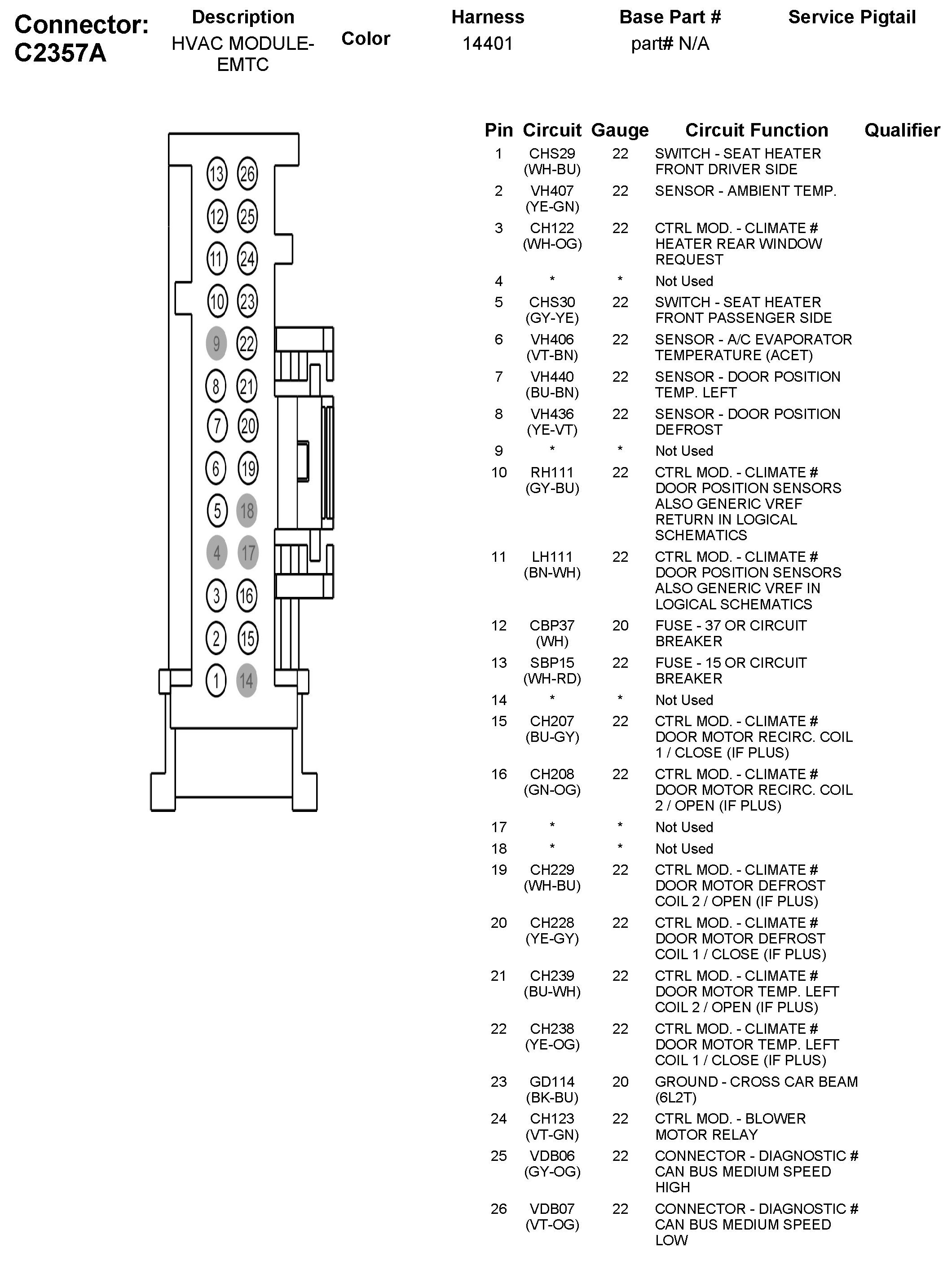

C2357A HVAC Module-EMTC
