Air Filter Element




Intake Air System Components - Exploded View

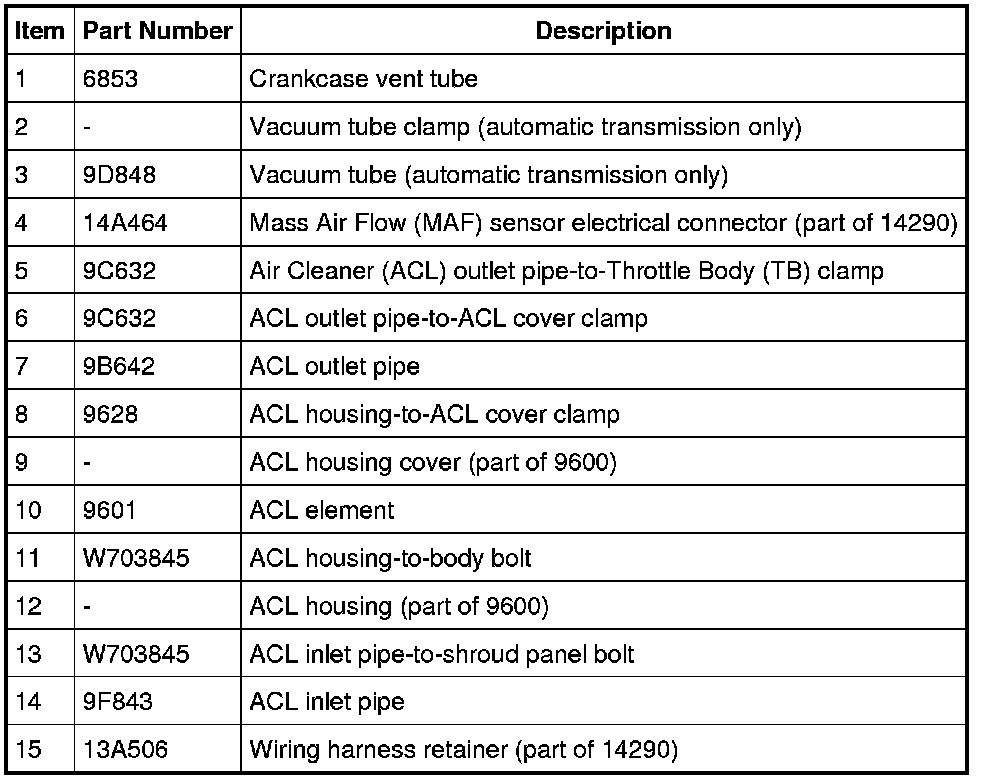

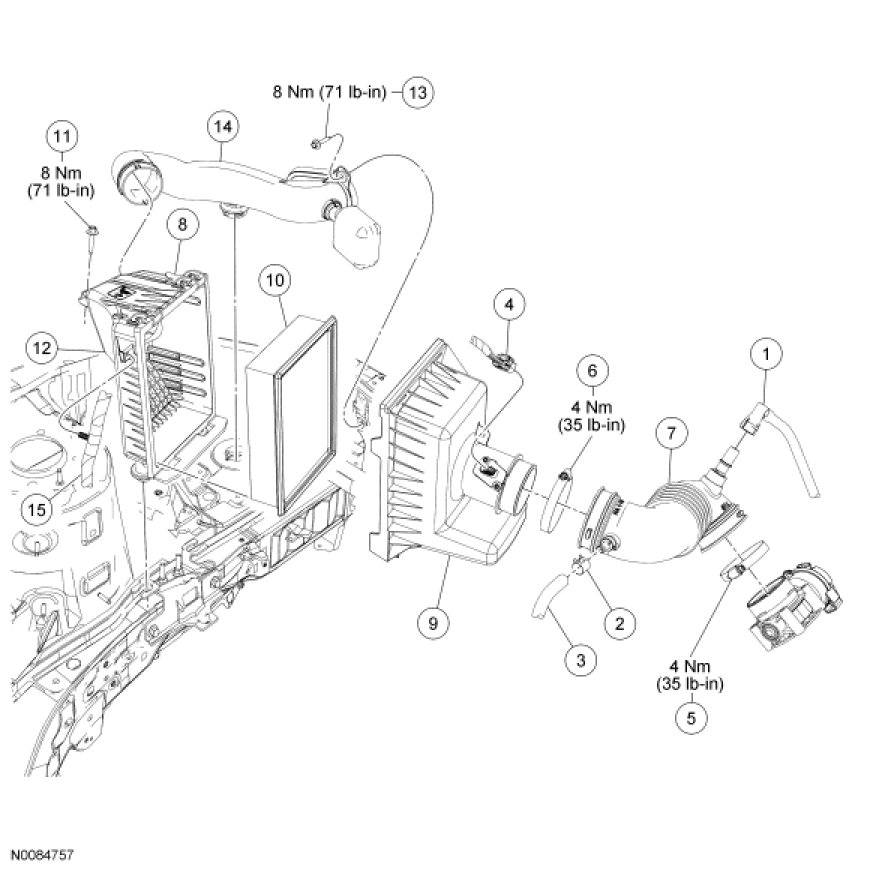

Air Cleaner Assembly, Intake Pipe and Outlet Pipe

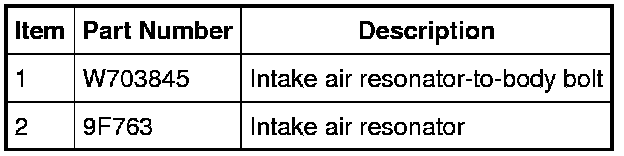

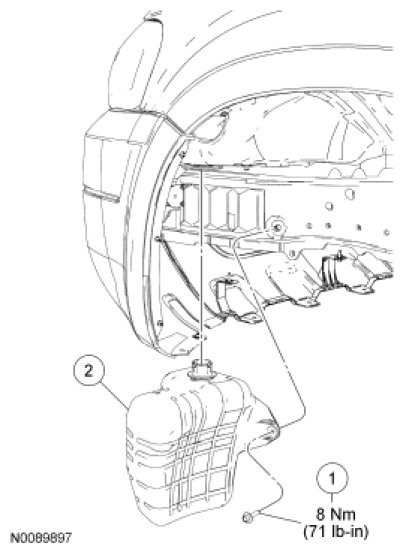

Intake Air Resonator
