Utility Storage Compartment
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Utility Storage Compartment

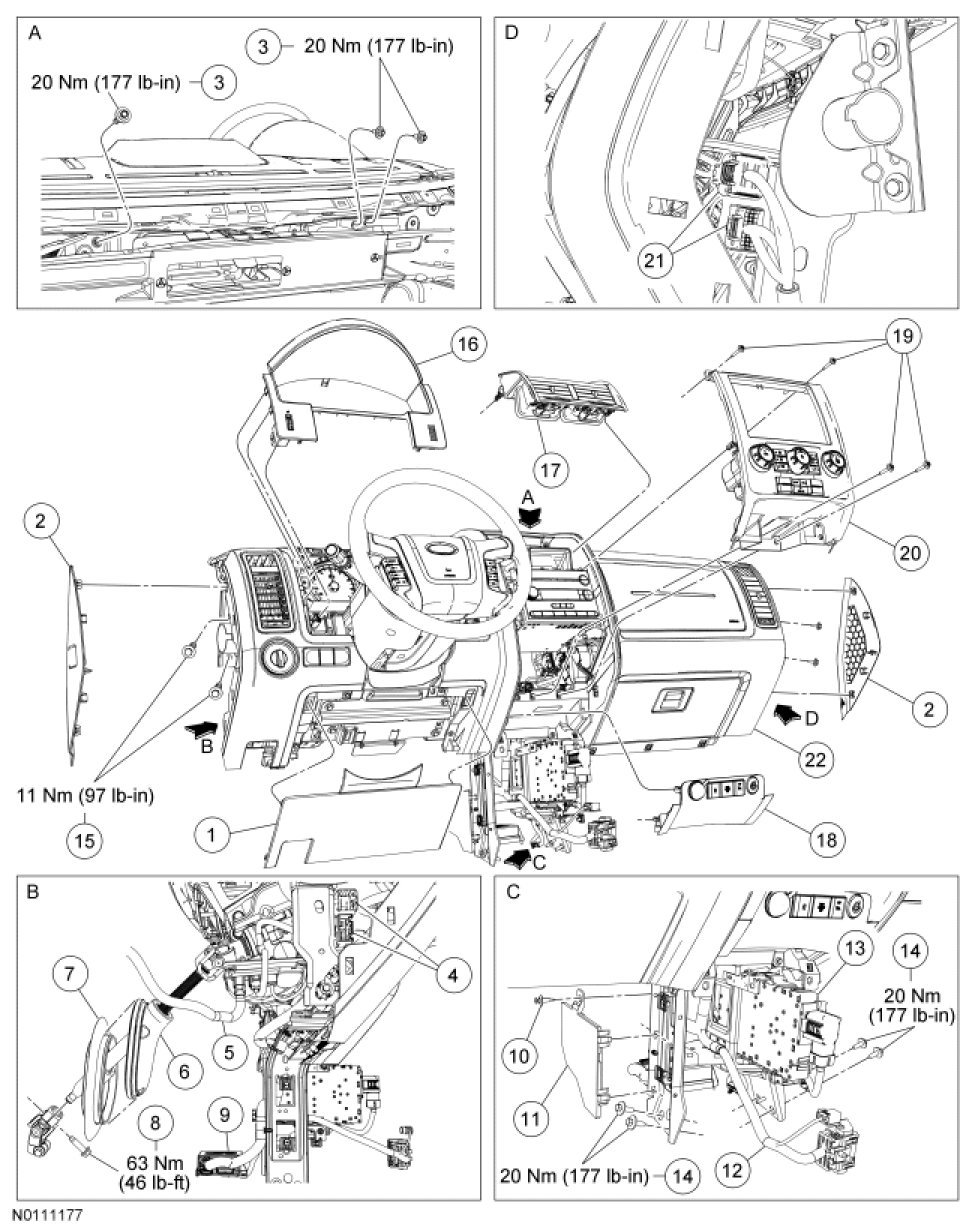

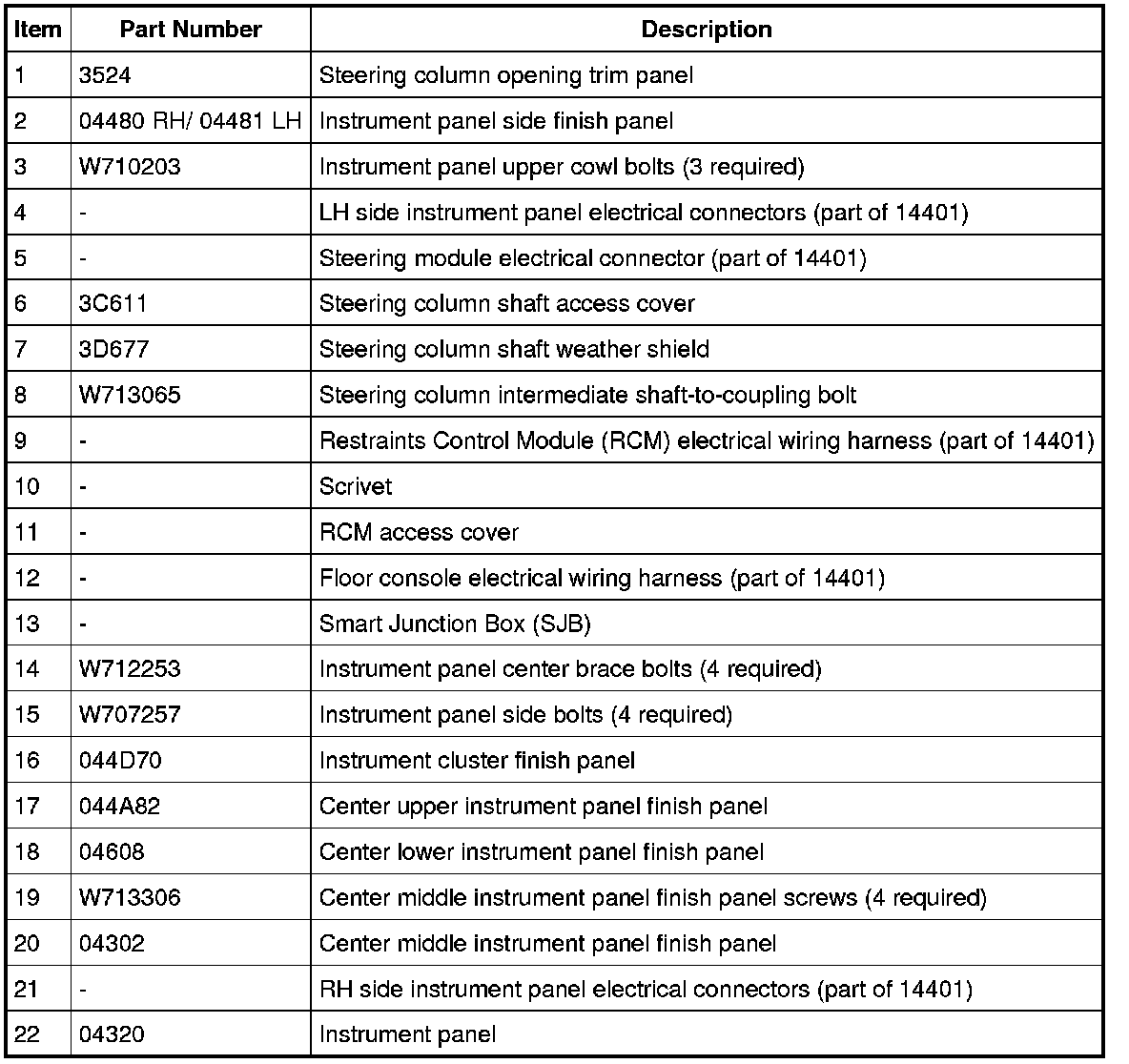

Instrument Panel - Exploded View
Instrument Panel
