Home >> Ford >> 2011 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> C2364B Audio Digital Signal Processing (DSP) Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

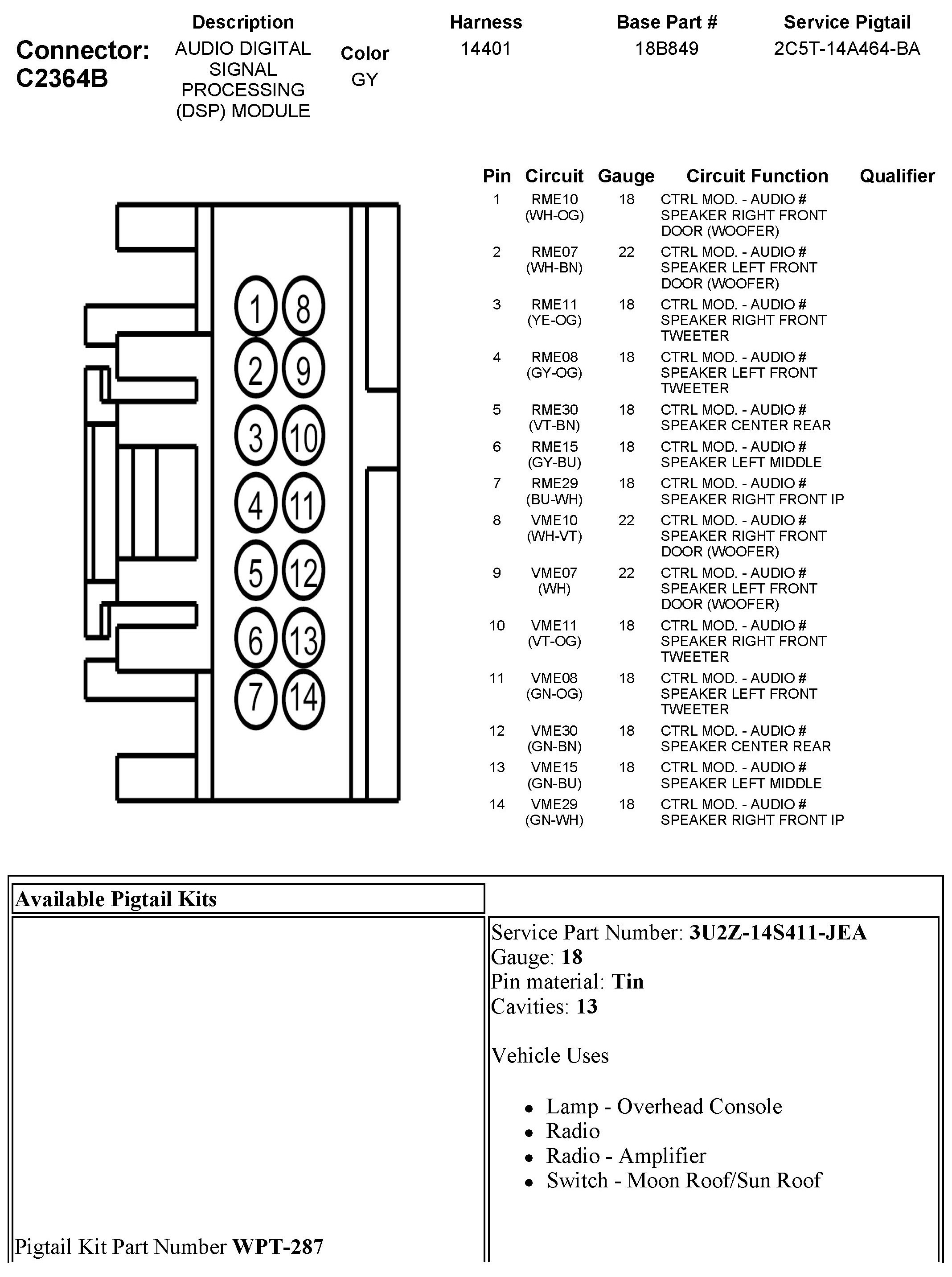

C2364B Audio Digital Signal Processing (DSP) Module
