Ford
>>
2011
>>
F 150 2WD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

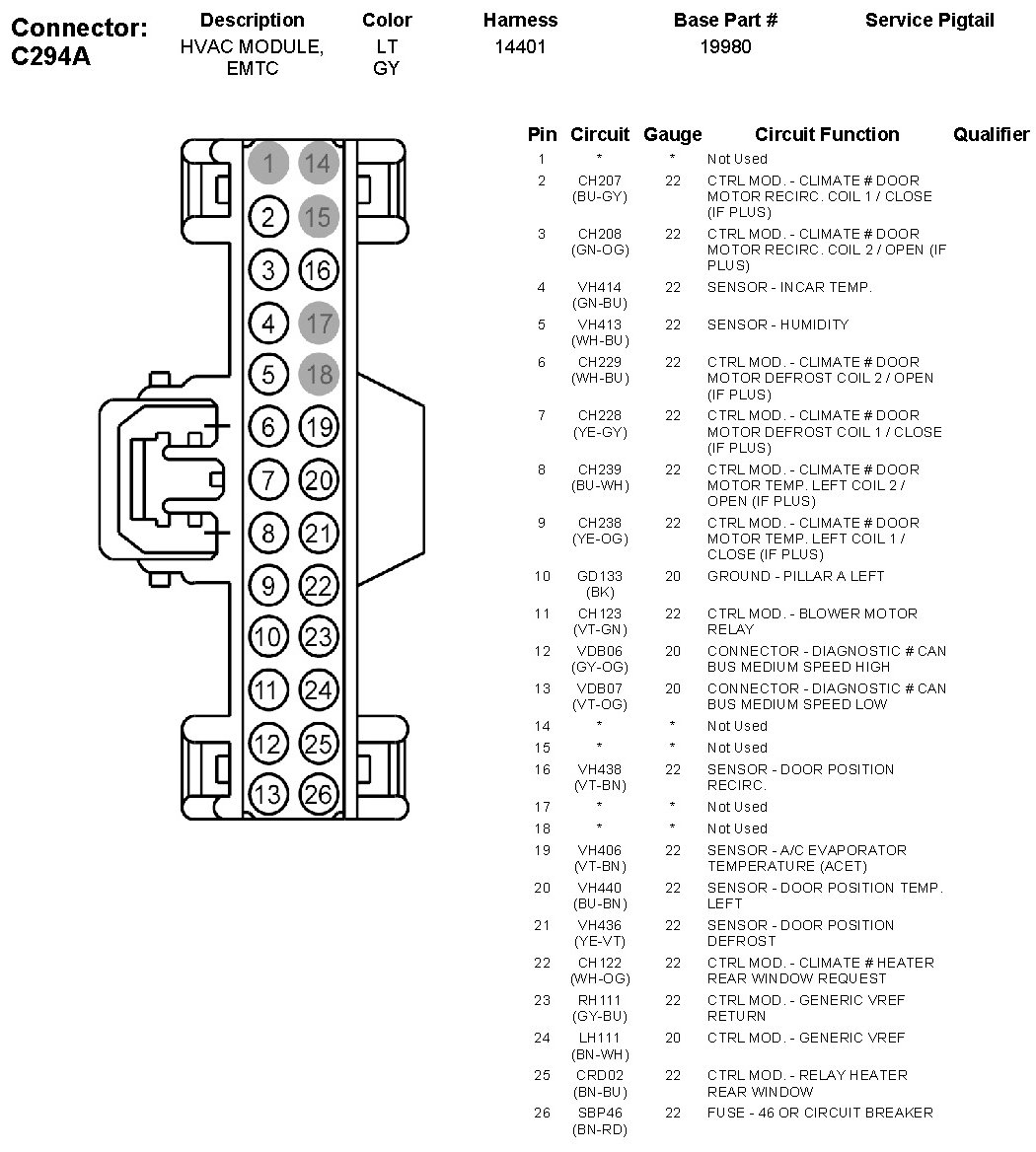

C294A HVAC Module, EMTC
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
C294A HVAC Module, EMTC
