HVAC Module DTC Chart




Climate Control System

DTC Charts

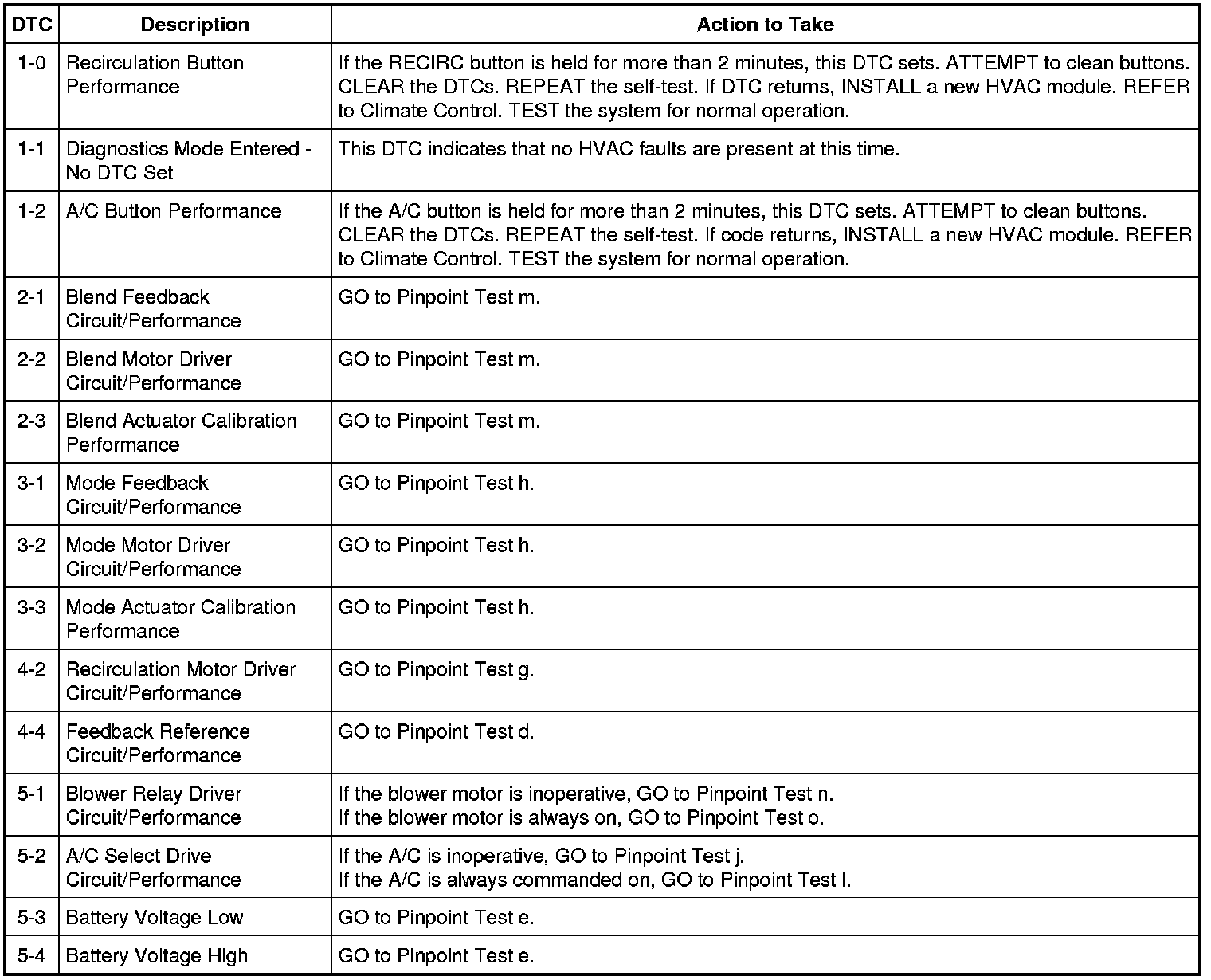

HVAC Module DTC Chart

NOTE: Some PCM and Instrument Panel Cluster (IPC) DTCs may inhibit A/C operation. If any PCM or IPC DTCs are retrieved, diagnose those first. Refer to the PCM DTC Chart or the Instrument Panel Cluster (IPC) DTC Chart. PCM DTC Chart Instrument Panel Cluster (IPC) DTC Chart
