Timing Cover

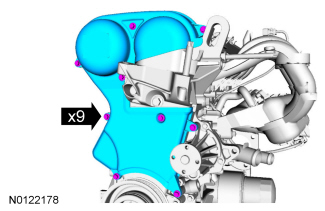

Install the upper timing belt cover and the 9 bolts.
Tighten to 9 Nm (80 lb-in).

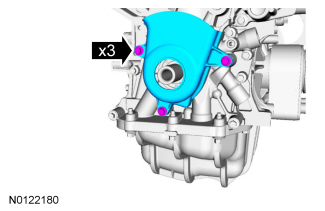

Install the lower timing belt cover and the 3 bolts.
Tighten to 9 Nm (80 lb-in).
