Exploded Views




Wiper and Washer System - Exploded View

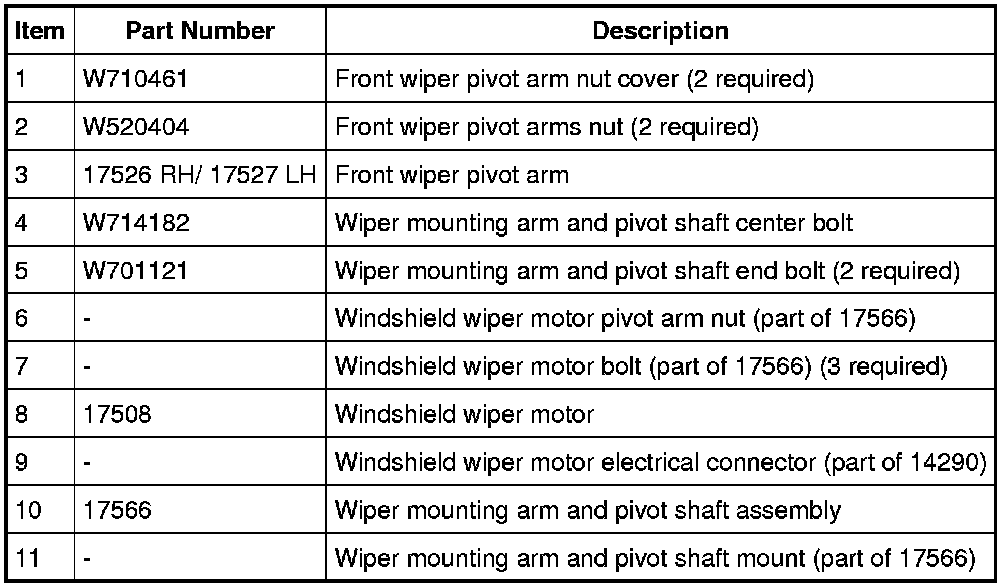

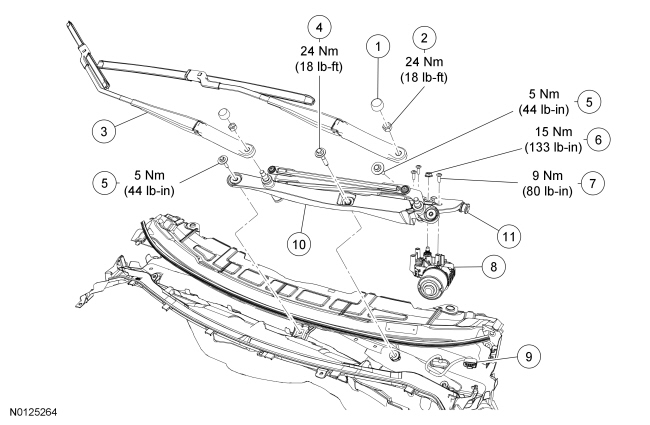

Windshield Wipers

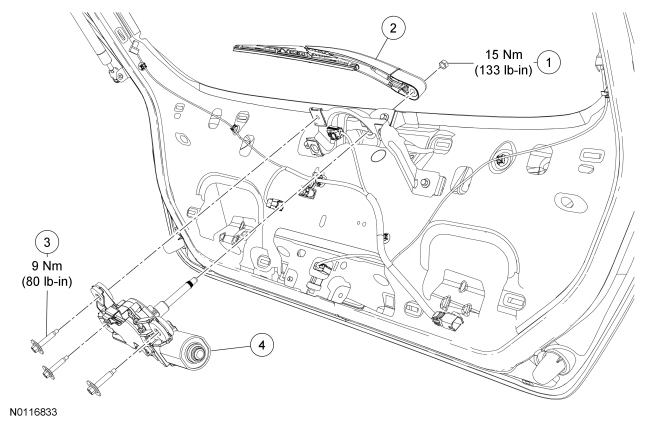

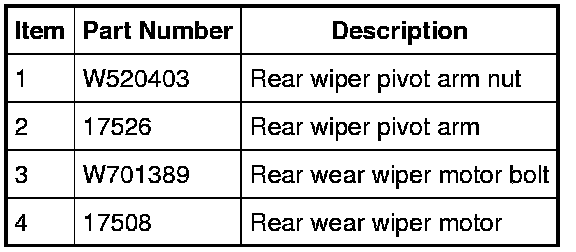

Rear Window Wipers

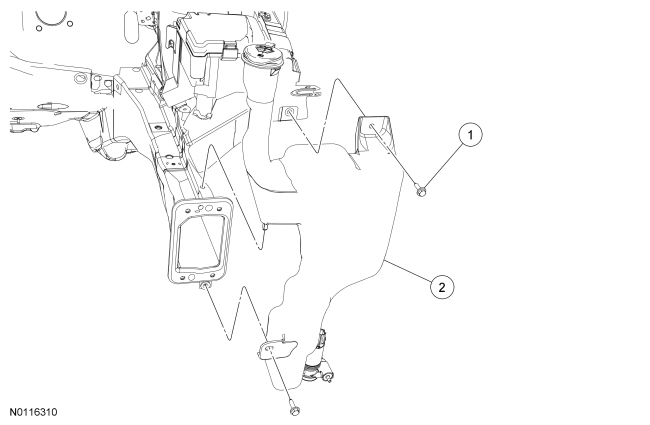

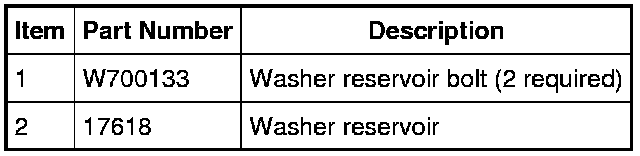

Washer Reservoir

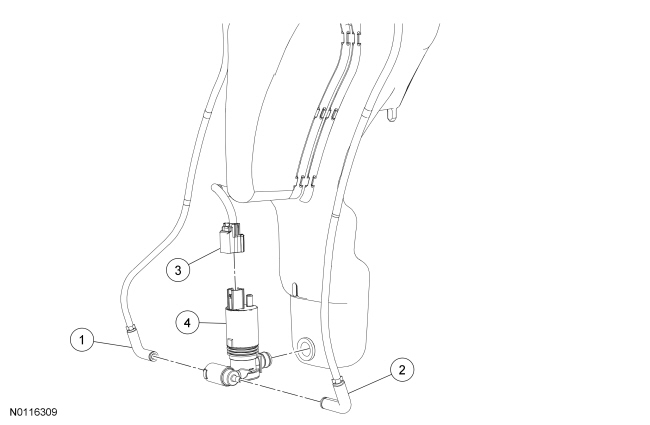

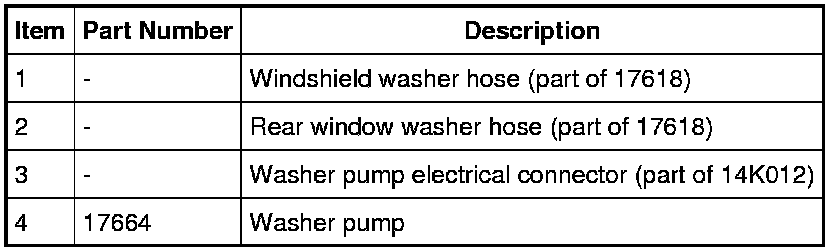

Washer Pump

NOTE: 5 door washer pump shown, 4 door washer pump similar.
